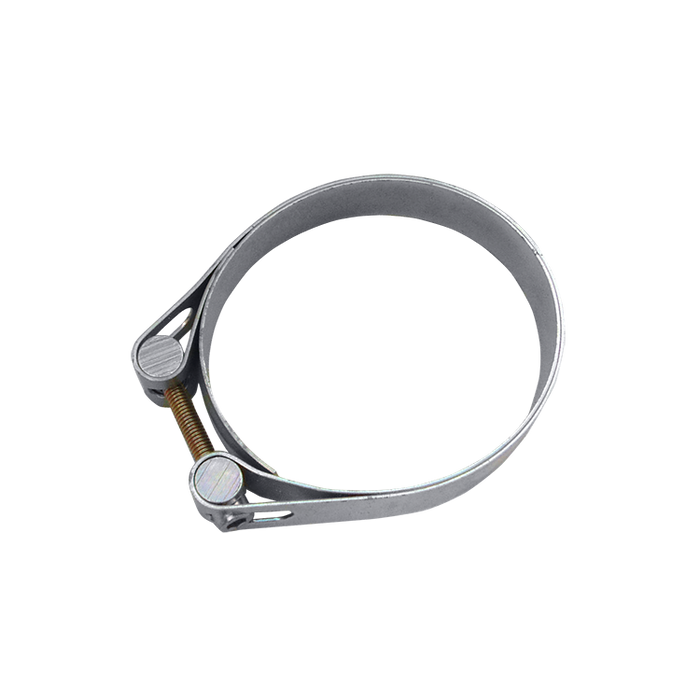

Hose clamp single screw

Hose clamp single screw

Article number 9-2720351

Description

A robust and reliable hose clamp that comes with
allen screw and nut. Manufactured either in stainless
steel or galvanized steel and available with single
and double screw.

Technical Data

Article number
Diameter Range
Outer Diameter
9-2720351 30 - 35 mm 20 mm
9-2720401 34 - 40 mm 20 mm
9-2720451 39 - 45 mm 20 mm
9-2720501 44 - 50 mm 20 mm
9-2720551 49 - 55 mm 20 mm
9-2720601 54 - 60 mm 20 mm
9-2720651 59 - 65 mm 20 mm
9-2720701 64 - 70 mm 20 mm
9-2720751 68 - 74 mm 20 mm
9-2720801 74 - 80 mm 20 mm
9-2720851 79 - 85 mm 20 mm
9-2720901 84 - 90 mm 20 mm
9-2720951 89 - 95 mm 20 mm
9-2721001 94 - 100 mm 20 mm
9-2721051 99 - 105 mm 20 mm
9-2721101 104 - 110 mm 20 mm
9-2721151 109 - 115 mm 20 mm
9-2721201 114 - 120 mm 20 mm
9-2800351 30 - 35 mm 20 mm
9-2800401 34 - 40 mm 20 mm
9-2800451 39 - 45 mm 20 mm
9-2800501 44 - 50 mm 20 mm
9-2800551 49 - 55 mm 20 mm
9-2800601 54 - 60 mm 20 mm
9-2800651 59 - 65 mm 20 mm
9-2800701 64 - 70 mm 20 mm
9-2800751 68 - 74 mm 20 mm
9-2800801 74 - 80 mm 20 mm
9-2800851 79 - 85 mm 20 mm
9-2800901 84 - 90 mm 20 mm
9-2800951 89 - 95 mm 20 mm
9-2801001 94 - 100 mm 20 mm
9-2801051 99 - 105 mm 20 mm
9-2801101 104 - 110 mm 20 mm
9-2801151 109 - 115 mm 20 mm
9-2801201 114 - 120 mm 20 mm
9-2801301 124 - 130 mm 20 mm
