Severe Blockage Nozzles
NOZZLES FOR ICE, BLOCKAGES AND STOPPAGES
Early on, we developed AquaTeq® GLOBAL ICEBEAR®, which is equipped with three front jets directed towards a center point together with rear thrusting jets.
We work closely with our customers and received requests for an ice removing nozzle working efficiently to open up difficult stoppages, ice blockages and could be used clearing material before pipe pressing.

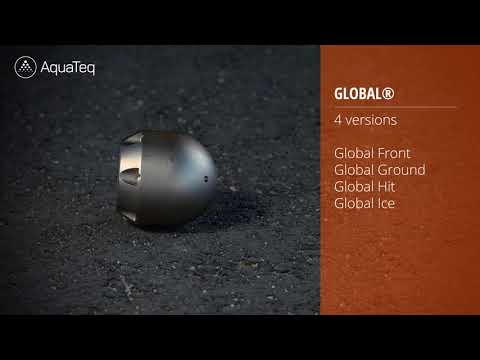

The GLOBAL™ series of cleaning nozzles belong to Tier 1 group of nozzles but differs from others in the group due to their high efficiency. GLOBAL™ HIT and GLOBAL ICEBEAR® is available from ¼ "thread up to 1 ¼". All thread sizes have different jet sizes available to adapt to nozzle capacity to most common jetting trucks / vans / trailers.
Some of our customers prefer chisel nozzles supplied with four front jets and fewer rear thrusting jets. The front jets consist of one center jet and three angled jets direct towards pipe wall. Our own series of Chisel nozzles are made of hardened stainless steel with an efficient balance between thrusting power and front opening jets. Chisel nozzles, which can also be called Tristar , Point or Quatro nozzles, are available both as Tier 1 (drilled jet holes) -¼ ” up to 1-1/4” thread, or as Tier 2 (with exchangeable jet inserts). The nozzles can be supplied with stainless steel jet inserts or with ceramic inserts, depending on the need of the customers. The Tier 2 nozzles can easily be adapted to any pump capacity. Tier 2 Chisel nozzles are available with ½" up to 1 ¼" hose connection.

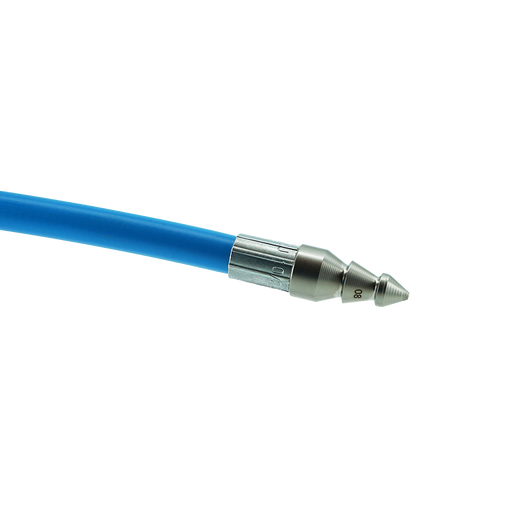

FIR® is another Tier 1 type of nozzle that many of our customers use to remove ice and blockages. They are extremely popular removing accumulated paper, wet wipes, or hard packed sludge or manure in pipe. All FIR® nozzles have a pointed shape from top to bottom, which allows them to effectively work their way through different type of blockages. FIR® is supplied with a center front jet and thrusting rear jets in two levels.
FIR® Pointed is a Tier 2 nozzle, meaning it is equipped with replaceable jet inserts, allowing perfect adaption to any high-pressure pump. FIR® Pointed is supplied with four front jets, like Chisel nozzles but with a Christmas tree shape supplied with thrusting rear jets in two levels effectively pushing the nozzle forward through clogs of various kinds. FIR® Pointed works for hoses with ¾ " up to 1 ¼" thread.

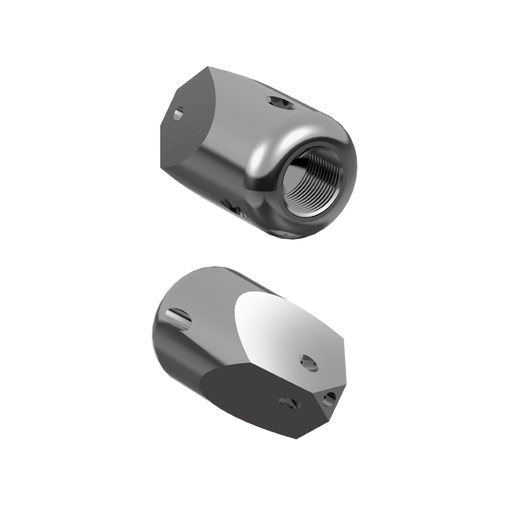

Chisel nozzle (drilled holes)
AquaTeq® Chisel Nozzles with drilled jet holes front and rear, are made of harden stainless steel. The nozzles four front jets penetrate blockages ...View full details
Chisel nozzle (jets)
AquaTeq® Chisel Nozzles Tier 2 supplied with exchangeable jet inserts booth for front and rear jets. The exchangeable jets allow a perfect match to...View full details
FIR® POINTED sewer cleaning nozzle is designed for an efficient opening of clogged pipes. With its soft shape and with a possibility of up to (4) j...View full details
FIR™ sewer nozzle is designed for penetrating clogged pipes, ice or remove sand, sludge etc. before root cutting. The FIR’s pointed shape and only ...View full details

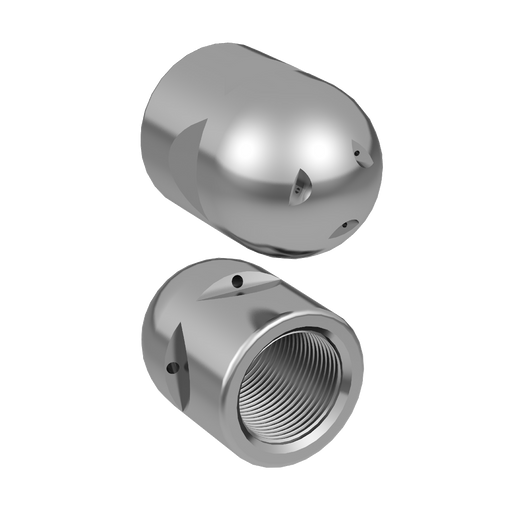

GLOBAL ICEBEAR® is one of our most popular nozzles in the GLOBAL™series, supplied with three front jets, angled towards the centre of the nozzle. D...View full details
GLOBAL™ SUPER PENETRATOR has a substantial amount of weight so it sits low on the bottom of the pipe. The specific design minimizes risk of nozzle ...View full details
GOBLIN® with 0˚ degrees rear jets has a weight of 3,6 kg (8 lbs) and is supplied with 8 rear jets 0˚ and one front jet. The front jet can be plugge...View full details
GOBLIN® 0° + 2°
GOBLIN® with 0˚ + 2˚ degrees rear jets comes in two sizes. The smaller version has a weight of 5,5 kg (12 lbs) and the larger version has a weight ...View full details
GOBLIN® 0° + 5°
GOBLIN® 0˚ + 5˚ degrees with 8 or 10 rear jets (depending of connecting size + one front jet optional), is often used to removal heavy material whe...View full details
GOBLIN® 10° + 30°
GOBLIN® 10˚ + 30˚ has a wide range of uses and can be seen as a "universal pipe cleaning nozzle". This is due to the combination of 10˚ and 30˚ ang...View full details
GOBLIN® 15° + 30°
Grenade or Bombs are the general working names in the business for this type of nozzle. The rear jet angles of 10˚ or 15˚degrees in combination wit...View full details
MULTI-GLOBAL® sewer penetrating nozzle is a spin off from our popular GLOBAL® series of nozzles but has replaceable orifices. MULTI-GLOBAL® sewer n...View full details
MULTI-GLOBAL® Guided cleaning nozzle
MULTI-GLOBAL® GUIDED CLEANING NOZZLE is constructed to allow the cleaning nozzle to travel info connecting pipes e.g. from the mail line into the s...View full details
Standard nozzles Ice
Our Standard Nozzles Ice are used for pipes with obstacles or clogs as well as pipe with ice. The Standard Nozzle Ice is supplied with several fron...View full details
