FLEX-SYSTEM™ Hose Protector

Name: FLEX-SYSTEM™ Hose Protector
Brand: AquaTeq
SKU: 6-1810080
Availability: InStock

Article number 6-1810080

Quantity

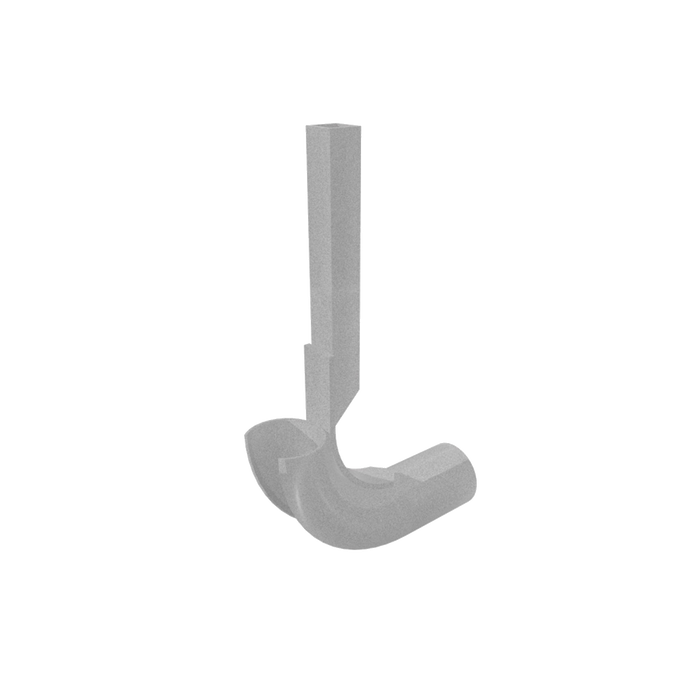

Hose Guide is a smaller and more compact hose saver for hose sizes up to 1"- Made of stainless steel for rough environments.

Length x diameter 230 x 90 x 45 mm

Length x diameter us 9.06" x 3.54" x 1.77"

Pipe dimension Min. 110 mm

Pipe dimension us Min 4.3"

Weight 0,42 kg

Weight us 0.9 lbs

Length x diameter 320 x 145 x 60 mm

Length x diameter us 12.60 x 5.71 x 2.36''

Manhole size Max 3/4″

Manhole size us Max 3/4″

Pipe dimension Min. 200 mm

Pipe dimension us Min 7.9"

Weight 0,75 kg

Weight us 1.6 lbs

Length x diameter 320 x 200 x 80 mm

Length x diameter us 12.60 x 7.87 x 3.15''

Manhole size Min. 250 mm

Manhole size us Min. 9.8"

Max hose diameter Max 1 1/4″

Pipe dimension Min. 250 mm

Pipe dimension us Min 9.8"

Weight 0,86 kg

Weight us 1.8 lbs

Length x diameter 320 x 145 x 80mm

Length x diameter us 12.60 x 5.71 x 3.15''

Manhole size Min. 160 mm

Manhole size us Min. 6.3"

Max hose diameter Max 1″

Pipe dimension Min. 160 mm

Pipe dimension us Min 6.3"

Weight 0,78 kg

Weight us 1.6 lbs

Technical Data

Article number	Pipe Dimension	Length x Diameter	Weight
6-1810080	Min. 110 mm	230 x 90 x 45 mm	0,42 kg
6-1810070	Min. 200 mm	320 x 145 x 60 mm	0,75 kg
6-1810069-01	Min. 250 mm	320 x 200 x 80 mm	0,86 kg
6-1810069-02	Min. 160 mm	320 x 145 x 80mm	0,78 kg
