Hose Roller Guide Light™
Article number 6-1811040
Description

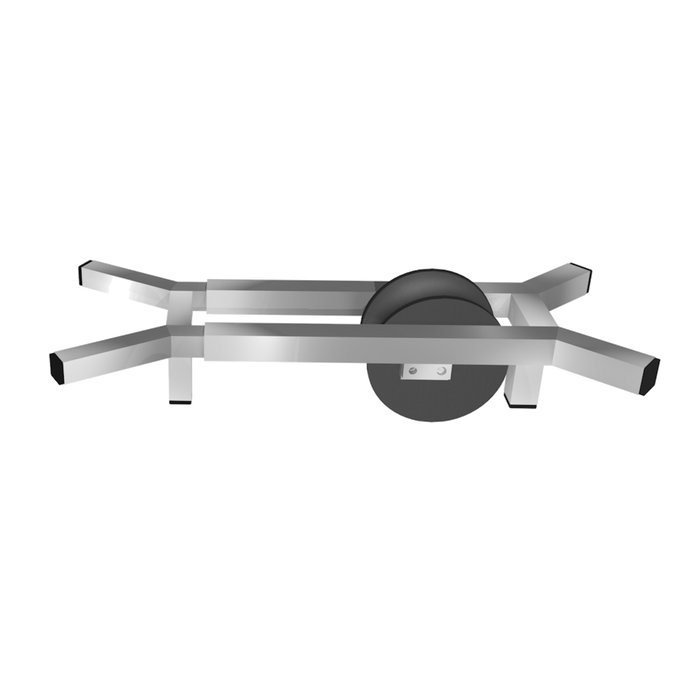

HOSE ROLLER GUIDE LIGHT™ is placed on top of the well and serves to reduce the wear and tear on sewer cleaning hose. This is especially useful when hose reel cannot be placed directly above the manhole. The cost is quickly recouped through reduced wear and tear on jetting hose and increased safety for operator.
The basic model covers manhole diameters from Ø 400 mm (16″) up to Ø 800 mm (32″). An optional extension easily replaces standard and provides the opportunity to cover manhole diameters from Ø 800 mm (32″) up to Ø 1200 mm (48″).
Features:
• Made of stainless steel.
• Roller wheel in UV-resistant and durable nylon.
• Basic model fits well diameter from Ø 400mm (16″) up to Ø 800mm (32″).
• Extension for well diameter from Ø800 (32″) up to Ø 1200 mm (48″).
• Self-lockling design.
Technical Data
| Article number |
Length x Diameter
|
Weight
|
Info
|
|---|---|---|---|
| 6-1811040 | - | 4,8 kg | Complete hose roller |
| 6-1811040-SP01 | 895 x 260 x 120 mm | 2,8 kg | Förlängingsdel 800-1200 mm (32″-48″) |
| 6-1811040-SP02 | 505 x 260 x 120 mm | 1,7 kg | Förlängningsdel 400-800 mm (16″-32″) |
| 6-1811040-SP04 | 150 x 150 x 77 mm | 0,95 kg | Roller wheel |
| 6-1811040-SP05 | - | - | Wheel shaft |
