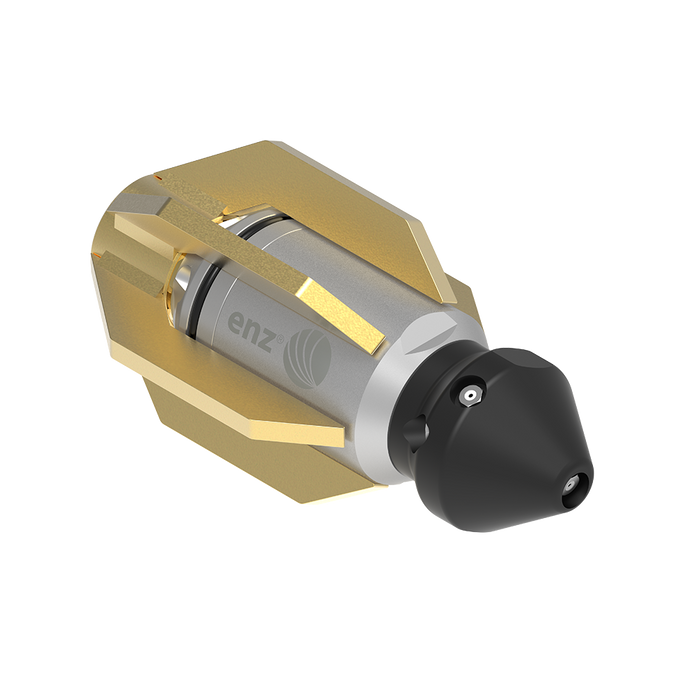

Bulldog® 1 1/4"
Article number 2-400101B
Description
The enz® Bulldog® rotating nozzle has been designed for operation with recycling water and fresh water. The cleverly built sliding bearing allows the use of every kind of recycled water. An integrated oil-free braking system results in a low wear and tear operation and in controlled numbers of rotation. In this way a most efficient and economic pipe cleaning is achieved. The bore of the nozzle insert determines the admissible size of the dirt particles up to a maximum Ø 1mm.
Characteristics
- Easy to handle
- The tool is practically maintenance-free
Applications
- To remove fat, roots and harder incrustations
- For operation with recycling water and fresh water
Technical Data
| Article number |
Connection
|
Pipe Dimension
|
Min. L/min at 100 bar
|
Rear Jets
|
Front Jets
|
Rotating Jets
|
Length x Diameter
|
Weight
|
Recycling
|
Bursting Pressure
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2-400101B | 1 1/4" | 250 - 600 mm (10" - 24") | 200 l/min (53 US GPM) | 6 x M10 | 15°: 1 x M10 | 35°: 3 x M10 + 90°: 2 x M10 | 260 x 130 mm | 6,5 kg | Yes | 200 bar (2900 PSI) |
| 2-401101BS | 1 1/4" | 250 - 600 mm (10" - 24") | 200 l/min (53 US GPM) | 6 x M10 | 15°: 1 x M10 | 80°: 6 x M10 | 260 x 130 mm | 7,2 kg | Yes | 200 bar (2900 PSI) |
| 2-404101BS | 1 1/4" | 250 - 600 mm (10" - 24") | 200 l/min (53 US GPM) | 6 x M10 | 15°: 1 x M10 | 80°: 3 x M10 + 45°: 3 x M10 | 260 x 130 mm | 7,2 kg | Yes | 200 bar (2900 PSI) |
