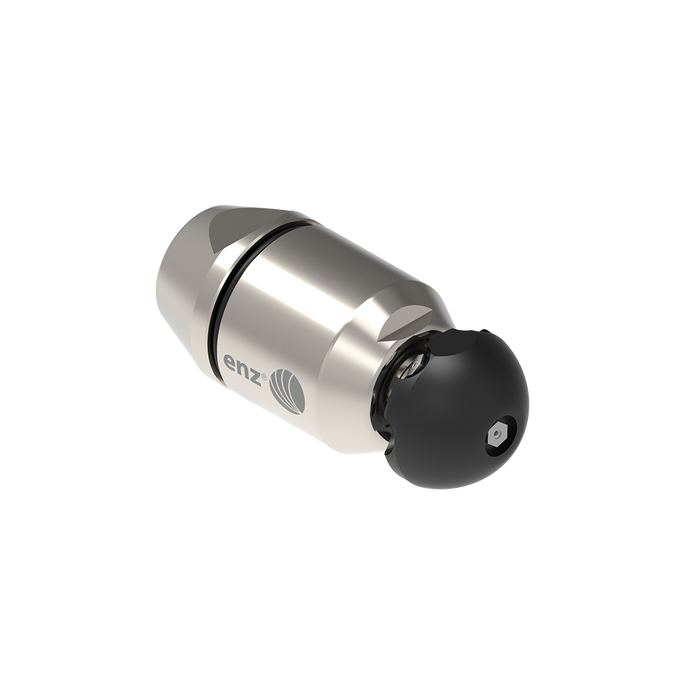

Bulldog® Low flow 1/4" - 1/2"
Article number 2-408037A
Description
The enz® Bulldog® rotating nozzle has been designed for operation with recycling water and fresh water. The cleverly built sliding bearing allows the use of every kind of recycled water. An integrated oil-free braking system results in a low wear and tear operation and in controlled numbers of rotation. In this way a most efficient and economic pipe cleaning is achieved. The bore of the nozzle insert determines the admissible size of the dirt particles up to a maximum Ø 1mm.
Characteristics
- Easy to handle
- The tool is practically maintenance-free
Applications
- To remove fat, roots and harder incrustations
- For operation with recycling water and fresh water
Technical Data
| Article number |
Connection
|
Pipe Dimension
|
Min. L/min at 100 bar
|
Front Jets
|
Rotating Jets
|
Length x Diameter
|
Weight
|
Recycling
|
Bursting Pressure
|
|---|---|---|---|---|---|---|---|---|---|
| 2-408037A | 1/4" | 40 – 100 mm (2″ – 4″) | 24 l /min (6.3 US GPM) | 1 x M6 (165°) | 2 x M6 (50°) | 89 x 38 mm | 0,48 kg | Yes | 350 bar (5000 PSI) |
| 2-408037B | 3/8" | 40 – 100 mm (2″ – 4″) | 24 l /min (6.3 US GPM) | 1 x M6 (165°) | 2 x M6 (50°) | 89 x 38 mm | 0,46 kg | Yes | 350 bar (5000 PSI) |
| 2-408037 | 1/2" | 40 – 100 mm (2″ – 4″) | 24 l /min (6.3 US GPM) | 1 x M6 (165°) | 2 x M6 (50°) | 85 x 38 mm | 0,44 kg | Yes | 350 bar (5000 PSI) |
