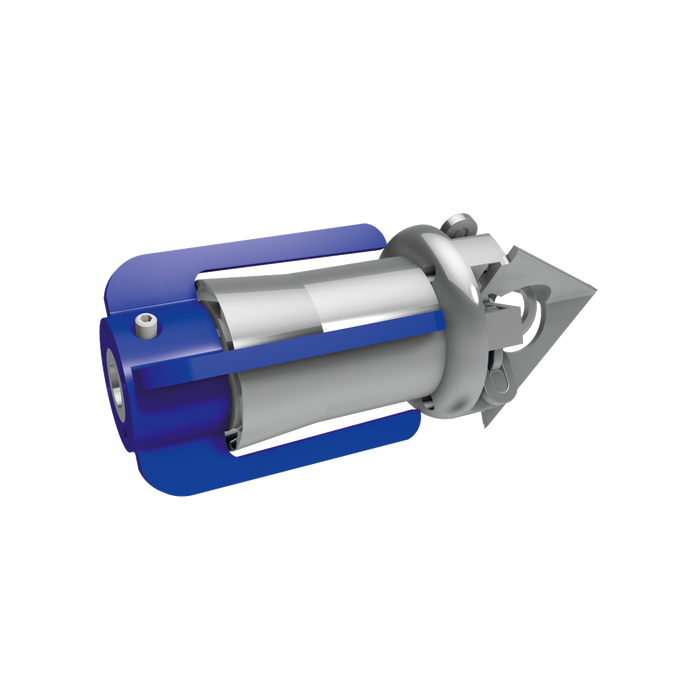

LUMBERJACK® LJ075

Article number LJ075-C04-01

Description

LUMBERJACK®LJ075 is the 2nd smallest cutter in the series. It can be supplied with ½”, ¾” or 1” hose connection. The LJ075 cutter can operate effectively with as low water flow rate as 60 LPM (16 US GPM) and can handle pressures up to 250 Bar (3500 PSI). LJ075 cover pipe sizes from 100 mm (4”) up to 250 mm (10”) and is delivered as a kit according to your needs. For ¾” and 1” hose connection the cutter can be used up to 300 mm (12”) pipes.

The LUMBERJACK®LJ075 skids are firm and sized to give the best guiding performance in pipe. Always use the correct size of sled for the pipe to be cut. The LUMBERJACK® should never be operated without a centralizing skid. Sizing is the key word setting up your LUMBERJACK® with the correct sled and cutting links for the job. The length of the cutting link, in concrete pipe or other insensitive pipes, should at the start of the cutting job, be approx.5 mm (1/5”) longer than the front diameter of the sled to be used. If performing cutting jobs in more fragile pipes make sure the cutting links are shorter than the max diameter of the sled. Save your worn links for this line of work. Important operating instructions are found in the operation manual following each cutter at delivery.

Technical Data

Article number
Connection
Pipe Dimension
Min. L/min at 100 bar
Rear Jets
Rotating Jets
Length x Diameter
Weight
Recycling
Bursting Pressure
LJ075-C04-01 1/2" 100|150 mm (4", 6") 60 l/min (16 US GPM) 4 x M6 3 x M6 560 x 250 x 460 mm 10,6 kg Yes 200 Bar (2900 PSI)
LJ075-C04-02 1/2" 100|150|200 mm (4", 6", 8") 60 l/min (16 US GPM) 4 x M6 3 x M6 560 x 250 x 460 mm 13 kg Yes 200 Bar (2900 PSI)
LJ075-C04-03 1/2" 100|150|225 mm (4", 6", 9") 60 l/min (16 US GPM) 4 x M6 3 x M6 560 x 250 x 460 mm 13,4 kg Yes 200 Bar (2900 PSI)
LJ075-C05-01 3/4″ 100|150 mm (4", 6") 60 l/min (16 US GPM) 4 x M6 3 x M6 560 x 250 x 460 mm 10,8 kg Yes 200 Bar (2900 PSI)
LJ075-C05-02 3/4″ 100|150|200 mm (4", 6", 8") 60 l/min (16 US GPM) 4 x M6 3 x M6 560 x 250 x 460 mm 13,2 kg Yes 200 Bar (2900 PSI)
LJ075-C05-03 3/4″ 100|150|225 mm (4", 6", 9") 60 l/min (16 US GPM) 4 x M6 3 x M6 560 x 250 x 460 mm 13,4 kg Yes 200 Bar (2900 PSI)
LJ075-C05-04 3/4″ 100|150|200|250 mm (4", 6", 8", 10") 60 l/min (16 US GPM) 4 x M6 3 x M6 560 x 250 x 460 mm 15,25 kg Yes 200 Bar (2900 PSI)
LJ075-C06-01 1" 100|150 mm (4", 6") 60 l/min (16 US GPM) 4 x M6 3 x M6 560 x 250 x 460 mm 11,3 kg Yes 200 Bar (2900 PSI)
LJ075-C06-02 1" 100|150|200 mm (4", 6", 8") 60 l/min (16 US GPM) 4 x M6 3 x M6 560 x 250 x 460 mm 13,7 kg Yes 200 Bar (2900 PSI)
LJ075-C06-03 1" 100|150|225 mm (4", 6", 9") 60 l/min (16 US GPM) 4 x M6 3 x M6 560 x 250 x 460 mm 13,9 kg Yes 200 Bar (2900 PSI)
LJ075-C06-04 1" 100|150|200|250 mm (4", 6", 8", 10") 60 l/min (16 US GPM) 4 x M6 3 x M6 560 x 250 x 460 mm 16,4 kg Yes 200 Bar (2900 PSI)
LJ075-C06-05 1" 200 (8") 60 l/min (16 US GPM) 4 x M6 3 x M6 560 x 250 x 460 mm 11,54 kg Yes 200 Bar (2900 PSI)
LJ075-C06-06 1" 150|200|250 mm (6", 8", 10") 60 l/min (16 US GPM) 4 x M6 3 x M6 560 x 250 x 460 mm 16,4 kg Yes 200 Bar (2900 PSI)
