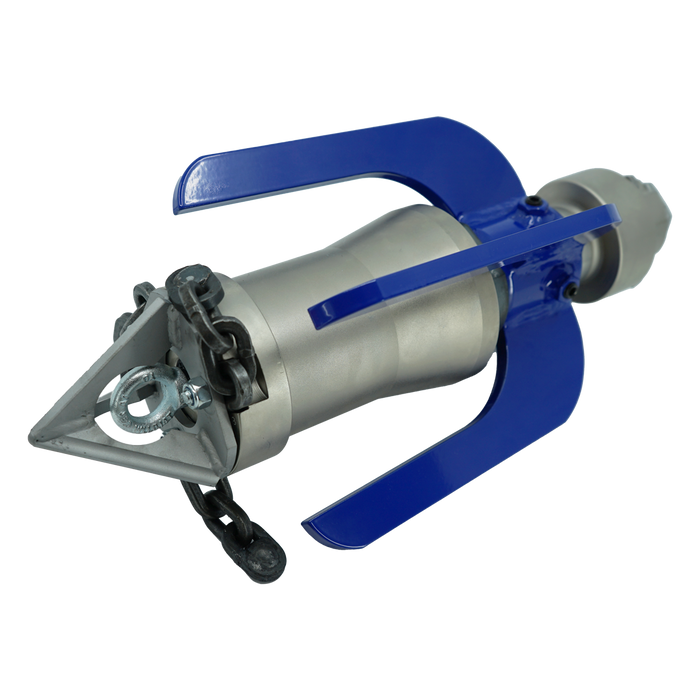

LUMBERJACK® LJ200
Article number LJ200-C05-01
Description
LUMBERJACK®LJ200 is in one of our most popular cutters. The LUMBERJACK® series of cutters are considered as one of the most reliable tools on the market. Easy-to-use, effective, and long-lasting are some remarks from our customers.
The LUMBERJACK® Cutters are high speed, low torque multipurpose cutters. The rotation of the LUMBERJACK® is powered by the water pressure supplied by a normal jetting or recycling truck.
The LUMBERJACK® LJ200 kit include turbine, feeder tube, chain plate, tow ring, front knife, sled(s), three (3) sets of cutting link per sled size, thrusting nozzle with ceramic jets and spanner wrench.
LUMBERJACK®LJ200 can easily be connected to ¾”,1” or 1 ¼” hose connections and all cutters are supplied set up according to pump and hose data received from user. The LJ200 operates effectively already at 200 LPM (53 US GPM) and can handle pump pressures up to 250 Bar (3500 PSI). LJ200 operate in pipe sizes from 150mm (6”) up to 300 mm (12”). The LJ200 kit is supplied according to your needs and specifications.
The LUMBERJACK®LJ200 skids are firm with a sturdy construction made of hardox steel and the design and size of each individual sled is made for optimal cutting performance in pipe. Remember to proof the cutter set up for the pipe size to be cut. Stand the cutter on one runner with the correct cutting links inserted in the slots of the chain plate. The chain should not exceed sled size with more than 6-8 mm (¼”-5/16”) for concrete pipes. If pipe is made of plastic, PVC, clay, or other brittle materials, or if pipe is in bad condition, use just the front knife or if necessary, use worn cutting links with a length never exceeding the size of the sled!
Technical Data
| Article number |
Connection
|
Pipe Dimension
|
Min. L/min at 100 bar
|
Rear Jets
|
Rotating Jets
|
Length x Diameter
|
Weight
|
Recycling
|
Bursting Pressure
|
|---|---|---|---|---|---|---|---|---|---|
| LJ200-C05-01 | 3/4" | 150|200 mm (6", 8") | 200 l/min (53 US GPM) | 3 x 1/8" | 6 x M6 | 540 x 700 x 300 mm | 23,8 kg | Yes | 200 bar (2900 PSI) |
| LJ200-C05-02 | 3/4" | 150|225 mm (6", 9") | 200 l/min (53 US GPM) | 3 x 1/8" | 6 x M6 | 540 x 700 x 300 mm | 23,7 kg | Yes | 200 bar (2900 PSI) |
| LJ200-C05-03 | 3/4" | 150|200|250 mm (6", 8", 10") | 200 l/min (53 US GPM) | 3 x 1/8" | 6 x M6 | 540 x 700 x 300 mm | 28,2 kg | Yes | 200 bar (2900 PSI) |
| LJ200-C05-04 | 3/4" | 150|225|250 mm (6", 9", 10") | 200 l/min (53 US GPM) | 3 x 1/8" | 6 x M6 | 540 x 700 x 300 mm | 28,4 kg | Yes | 200 bar (2900 PSI) |
| LJ200-C05-05 | 3/4" | 150|200|250|300 mm (6", 8", 10", 12") | 200 l/min (53 US GPM) | 3 x 1/8" | 6 x M6 | 540 x 700 x 300 mm | 30,5 kg | Yes | 200 bar (2900 PSI) |
| LJ200-C06-01 | 1" | 150|200 mm (6", 8") | 200 l/min (53 US GPM) | 3 x 1/8" | 6 x M6 | 540 x 700 x 300 mm | 23,8 kg | Yes | 200 bar (2900 PSI) |
| LJ200-C06-02 | 1" | 150|225 mm (6", 9") | 200 l/min (53 US GPM) | 3 x 1/8" | 6 x M6 | 540 x 700 x 300 mm | 23,7 kg | Yes | 200 bar (2900 PSI) |
| LJ200-C06-03 | 1" | 150|200|250 mm (6", 8", 10") | 200 l/min (53 US GPM) | 3 x 1/8" | 6 x M6 | 540 x 700 x 300 mm | 28,2 kg | Yes | 200 bar (2900 PSI) |
| LJ200-C06-04 | 1" | 150|225|250 mm (6", 9", 10") | 200 l/min (53 US GPM) | 3 x 1/8" | 6 x M6 | 540 x 700 x 300 mm | 28,4 kg | Yes | 200 bar (2900 PSI) |
| LJ200-C06-05 | 1" | 150|200|250|300 mm (6", 8", 10", 12") | 200 l/min (53 US GPM) | 3 x 1/8" | 6 x M6 | 540 x 700 x 300 mm | 30,5 kg | Yes | 200 bar (2900 PSI) |
| LJ200-C06-06 | 1" | 200|250|300 mm (8", 10", 12") | 200 l/min (53 US GPM) | 3 x 1/8" | 6 x M6 | 540 x 700 x 300 mm | 28,3 kg | Yes | 200 bar (2900 PSI) |
| LJ200-C07-01 | 1 1/4" | 150|200 mm (6", 8") | 200 l/min (53 US GPM) | 3 x 1/8" | 6 x M6 | 540 x 700 x 300 mm | 23,7 kg | Yes | 200 bar (2900 PSI) |
| LJ200-C07-02 | 1 1/4" | 150|225 mm (6", 9") | 200 l/min (53 US GPM) | 3 x 1/8" | 6 x M6 | 540 x 700 x 300 mm | 23,6 kg | Yes | 200 bar (2900 PSI) |
| LJ200-C07-03 | 1 1/4" | 150|200|250 mm (6", 8", 10") | 200 l/min (53 US GPM) | 3 x 1/8" | 6 x M6 | 540 x 700 x 300 mm | 28 kg | Yes | 200 bar (2900 PSI) |
| LJ200-C07-04 | 1 1/4" | 150|225|250 mm (6", 9", 10") | 200 l/min (53 US GPM) | 3 x 1/8" | 6 x M6 | 540 x 700 x 300 mm | 28,3 kg | Yes | 200 bar (2900 PSI) |
| LJ200-C07-05 | 1 1/4" | 150|200|250|300 mm (6", 8", 10", 12") | 200 l/min (53 US GPM) | 3 x 1/8" | 6 x M6 | 540 x 700 x 300 mm | 30,4 kg | Yes | 200 bar (2900 PSI) |
| LJ200-C07-06 | 1 1/4" | 200|250|300 mm (8", 10", 12") | 200 l/min (53 US GPM) | 3 x 1/8" | 6 x M6 | 540 x 700 x 300 mm | 28,2 kg | Yes | 200 bar (2900 PSI) |
