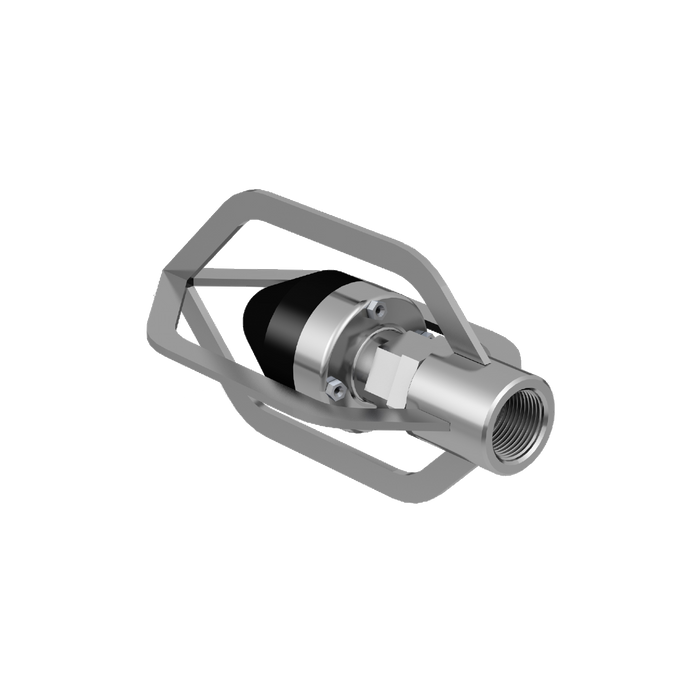

Jaws 100 Sewer Nozzle With Small Sled

JAWS® 100

€0,00
Article number 2-11360-C03-JS-01

Description

JAWS®100 is the smaller version of the JAWS® made with same quality and design as the larger version (quality Swedish stainless steel with a protective rubber cone). The service lifetime is the same as for the larger version, meaning you can easily get +10 years out of the nozzle head. Remember to check the wear of the sled. When sled starts to get worn down the sled should be replaced. The sled and the exchangeable jets are easy to replace.

The JAWS®100 is recommended to be used with ½” or ¾” hose. The effectiveness of the nozzle makes it also a preferred nozzle together with 3/8” hoses, when material such as sand, gravel and stones, need to be removed in pipe.

The JAWS®100 operates in pipe sizes from 100 mm up to 300 mm (4”-12”) depending on the available water pump capacity.

The JAWS®100 has two different sled sizes – 100-150 mm (4”-6”) and 150-300 mm (6”-12”). The nozzle is mounted between the sled runners for optimal cleaning and to minimize risk of getting stuck in pipe. The sleds are made in stainless steel and it is easy to remove and mount nozzle with the special tool supplied for JAWS®100.

Do not hesitate to contact us or our distributors with any questions you might have. We are happy to guide and assist.

Technical data

Connection 3/8"
For recyclers No
Length x diameter 180 x 93 mm
Max working pressure 250 bar / 3500 psi
Min water flow at 1450 psi 30 l/min (8 us gpm)
Pipe dimension 100 - 150 mm (4" - 6")
Rear jets 4 x m6
Weight 0,68 kg
Connection 3/8"
For recyclers No
Length x diameter 180 x 93 mm
Max working pressure 250 bar / 3500 psi
Min water flow at 1450 psi 30 l/min (8 us gpm)
Pipe dimension 100 - 150 mm (4" - 6")
Rear jets 4 x m6
Weight 0,68 kg
Connection 3/8"
Pipe dimension 100 - 300 mm (4" - 12")
Connection 3/8"
Pipe dimension 100 - 300 mm (4" - 12")
Connection 3/8"
For recyclers No
Length x diameter 258 x 143 mm
Max working pressure 250 bar / 3500 psi
Min water flow at 1450 psi 30 l/min (8 us gpm)
Pipe dimension 150 - 300 mm (6"-12")
Rear jets 4 x m6
Weight 0,82 kg
Connection 3/8"
For recyclers No
Length x diameter 258 x 143 mm
Max working pressure 250 bar / 3500 psi
Min water flow at 1450 psi 30 l/min (8 us gpm)
Pipe dimension 150 - 300 mm (6"-12")
Rear jets 4 x m6
Weight 0,82 kg
Connection 1/2"
For recyclers No
Length x diameter 180 x 93 mm
Max working pressure 250 bar / 3500 psi
Min water flow at 1450 psi 30 l/min (8 us gpm)
Pipe dimension 100 - 250 mm (4" - 10")
Rear jets 4 x m6
Weight 0,68 kg
Connection 1/2"
For recyclers No
Length x diameter 180 x 93 mm
Max working pressure 250 bar / 3500 psi
Min water flow at 1450 psi 30 l/min (8 us gpm)
Pipe dimension 100 - 250 mm (4" - 10")
Rear jets 4 x m6
Weight 0,68 kg
Connection 1/2"
Pipe dimension 100 - 300 mm (4" - 12")
Connection 1/2"
Pipe dimension 100 - 300 mm (4" - 12")
Connection 1/2"
For recyclers No
Length x diameter 258 x 143 mm
Max working pressure 250 bar / 3500 psi
Min water flow at 1450 psi 30 l/min (8 us gpm)
Pipe dimension 150 - 300 mm (6"-12")
Rear jets 4 x m6
Weight 0,82 kg
Connection 1/2"
For recyclers No
Length x diameter 258 x 143 mm
Max working pressure 250 bar / 3500 psi
Min water flow at 1450 psi 30 l/min (8 us gpm)
Pipe dimension 150 - 300 mm (6"-12")
Rear jets 4 x m6
Weight 0,82 kg
Connection 3/4"
For recyclers No
Length x diameter 180 x 93 mm
Max working pressure 250 bar / 3500 psi
Min water flow at 1450 psi 30 l/min (8 us gpm)
Pipe dimension 100 - 250 mm (4" - 10")
Rear jets 4 x m6
Weight 0,61 kg
Connection 3/4"
For recyclers No
Length x diameter 180 x 93 mm
Max working pressure 250 bar / 3500 psi
Min water flow at 1450 psi 30 l/min (8 us gpm)
Pipe dimension 100 - 250 mm (4" - 10")
Rear jets 4 x m6
Weight 0,61 kg
Connection 3/4"
Pipe dimension 100 - 300 mm (4" - 12")
Connection 3/4"
Pipe dimension 100 - 300 mm (4" - 12")
Connection 3/4"
For recyclers No
Length x diameter 258 x 143 mm
Max working pressure 250 bar / 3500 psi
Min water flow at 1450 psi 30 l/min (8 us gpm)
Pipe dimension 150 - 300 mm (6"-12")
Rear jets 4 x m6
Weight 0,76 kg
Connection 3/4"
For recyclers No
Length x diameter 258 x 143 mm
Max working pressure 250 bar / 3500 psi
Min water flow at 1450 psi 30 l/min (8 us gpm)
Pipe dimension 150 - 300 mm (6"-12")
Rear jets 4 x m6
Weight 0,76 kg
