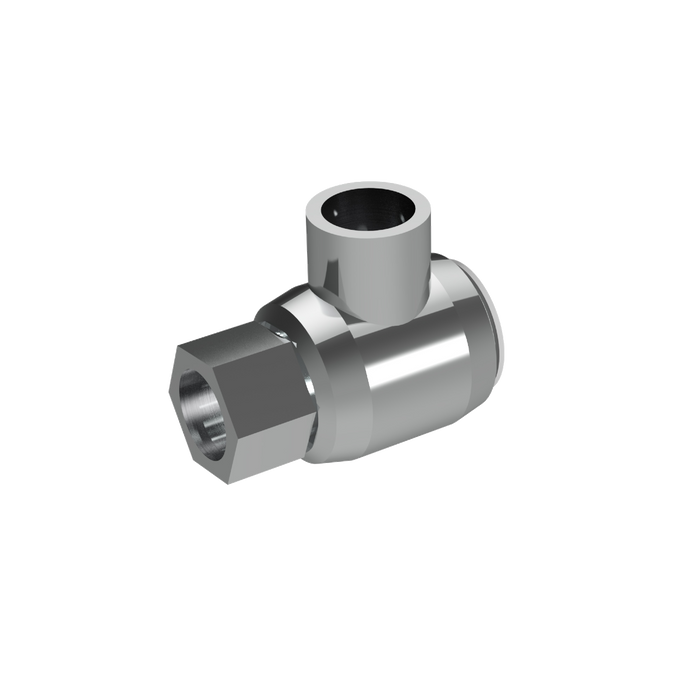

Swivel G2 KR

Swivel G2 KR

Article number 4-80100050

Description

Swivel connectors of the G2 KR type are often used on jetting unit hose reels. They are balanced and therefore very low torque. The swivel is provided with two double seals, which means that the coupling is tight under pressure as well as without pressure.

Technical data:
• Hard-chromed shaft
• Yellow chromate steel
• Pressure balanced
• Shoulder and body have fixed internal threads
• Temperature range -40 °C – +80 °C

Technical Data

Article number
Connection
Length
Max Pressure
4-80100050 1/2″ 78,3 mm 350 bar (5000 PSI)
4-80100075 3/4″ 86,6 mm 350 bar (5000 PSI)
4-80100100 1″ 123,8 mm 350 bar (5000 PSI)
4-80100125 1 1/4″ 126,8 mm 350 bar (5000 PSI)
4-80100150 1 1/2″ 155 mm 350 bar (5000 PSI)
4-80100200 2″ 181 mm 280 bar (4061 PSI)
