Pendulum Nozzle
Article number 2-45125B
Description

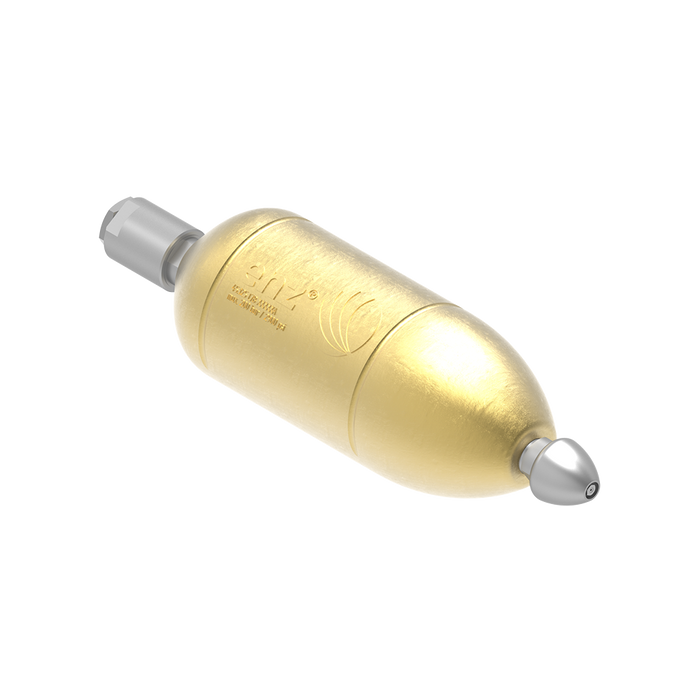

The enz® pendulum nozzle (oval profile bottom cleaner) cleans the bottom surface of large channels very well. This nozzle is especially suitable for the optimum cleaning and transport service in oval profiles. Thanks to the pendulum weight, a swivel joint that is offset from the middle, and water jets that are only directed downwards; stone deposits, debris and sludge can be removed effectively. Harder deposits can also be loosened and removed by using a special head with front jet. The heavy weight ensures that even with high water volumes, the nozzle does not fly up in the pipe. Thus, demonstrating its‘ cleaning performance.
Technical Data
| Article number |
Connection
|
Pipe Dimension
|
Min. L/min at 100 bar
|
Length x Diameter
|
Weight
|
Recycling
|
Bursting Pressure
|
|---|---|---|---|---|---|---|---|
| 2-45125B | 1" | 400 - 1200 mm | 150 l/min (40 US GPM) | 576 x 160 mm / 22.6“ x 6.2“ | 30 kg (68 lb) | Yes | 200 bar (2900 PSI) |
| 2-45125C | 1 1/4" | 400 - 1200 mm | 150 l/min (40 US GPM) | 576 x 160 mm / 22.6“ x 6.2“ | 30 kg (68 lb) | Yes | 200 bar (2900 PSI) |
