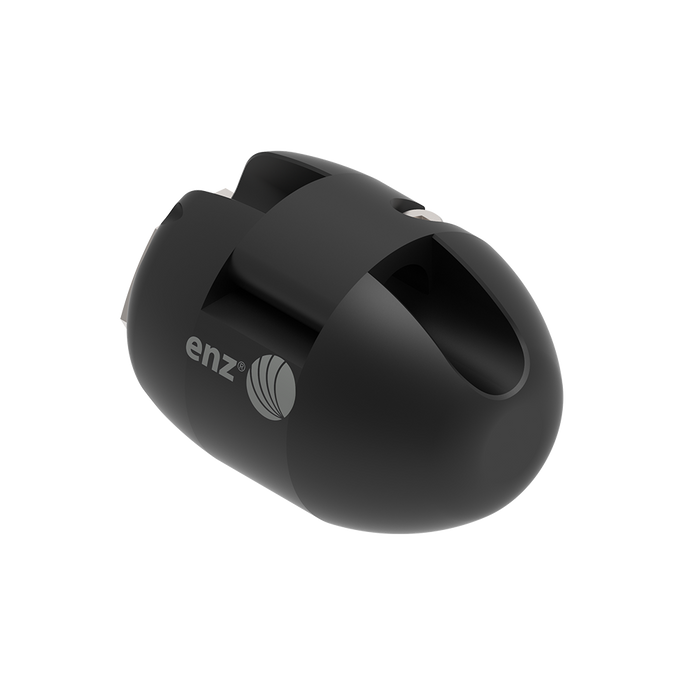

Camera Pull Nozzle
Article number 18-230050ZA-09
Description
The new camera pull nozzle from enz® is compatible with most cameras on the market. It convinces with a very high cleaning and pulling performance. Due to the loss-proof screw and cover, the nozzle is extremely user-friendly. Furthermore, the enz® camera nozzle is curved, wear-resistant and easy to handle. The application range is 80 - 250 mm (3" - 10").
Technical Data
| Article number |
Connection
|
Pipe Dimension
|
Min. L/min at 100 bar
|
Rear Jets
|
Length x Diameter
|
Weight
|
Recycling
|
Bursting Pressure
|
|---|---|---|---|---|---|---|---|---|
| 18-230050ZA-09 | 3/8" | 50 - 250 mm | 50 l/min (13 US GPM) | 4 x M6 | 45 x 60 mm | 0,5 kg | Yes | 250 bar (3625 PSI) |
| 18-230050ZA-10 | 3/8" | 50 - 250 mm | 50 l/min (13 US GPM) | 4 x M6 | 45 x 60 mm | 0,5 kg | Yes | 250 bar (3625 PSI) |
| 18-230050ZA-11 | 3/8" | 50 - 250 mm | 50 l/min (13 US GPM) | 4 x M6 | 45 x 60 mm | 0,5 kg | Yes | 250 bar (3625 PSI) |
| 18-230050ZA-12 | 3/8" | 50 - 250 mm | 50 l/min (13 US GPM) | 4 x M6 | 45 x 60 mm | 0,5 kg | Yes | 250 bar (3625 PSI) |
| 18-230050ZB-09 | 1/2" | 50 - 250 mm | 50 l/min (13 US GPM) | 4 x M6 | 45 x 60 mm | 0,5 kg | Yes | 250 bar (3625 PSI) |
| 18-230050ZB-10 | 1/2" | 50 - 250 mm | 50 l/min (13 US GPM) | 4 x M6 | 45 x 60 mm | 0,5 kg | Yes | 250 bar (3625 PSI) |
| 18-230050ZB-11 | 1/2" | 50 - 250 mm | 50 l/min (13 US GPM) | 4 x M6 | 45 x 60 mm | 0,5 kg | Yes | 250 bar (3625 PSI) |
| 18-230050ZB-12 | 1/2" | 50 - 250 mm | 50 l/min (13 US GPM) | 4 x M6 | 45 x 60 mm | 0,5 kg | Yes | 250 bar (3625 PSI) |
