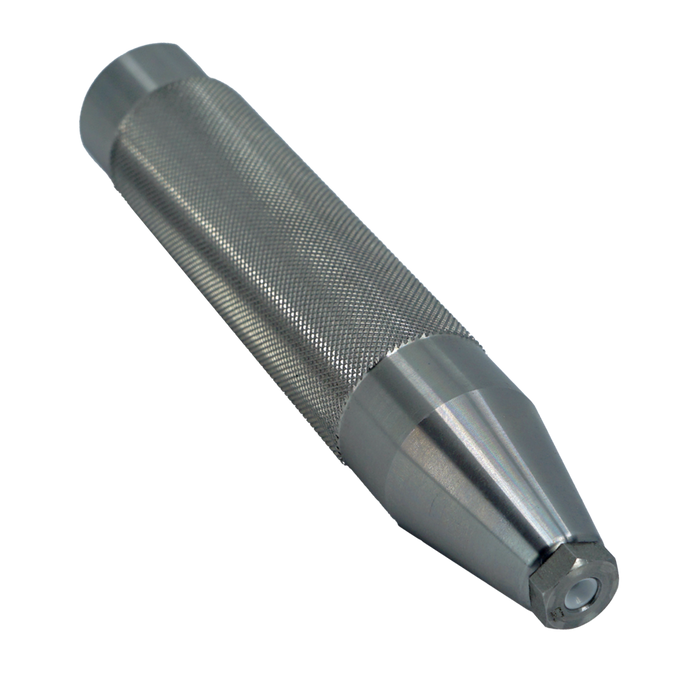

Hand Nozzle - Stainless steel
Article number 2-11305-HH-xx
Description
Our Hand Nozzles are the optimum tool for easy and fast cleaning of surfaces, manholes etc.
The Hand Nozzles are made of quality stainless steel with a knurled grip for safety.
Four different versions are available:
- Hand Nozzle with replaceable jet orifice supplying a round water jet.
- Hand Nozzle with replaceable jet orifice supplying a fan jet with preferred angle.
- Hand Nozzle with a firm 7 mm round water jet, suitable for 1” hose connection.
- All above hand nozzles supplied with safety flange.
Hand Nozzles with replaceable jet orifices gives a possibility to regulate pressure and water flow to your needs and to the pump capacity.
The jets are made in harden stainless steel or, for the round jet version also an option of ceramic stainless steel.
The hand nozzles are only intended to be used at low pressures, due to safety.
Technical Data
| Article number |
Connection
|
Min. L/min at 100 bar
|
Front Jets
|
Length x Diameter
|
Weight
|
Recycling
|
Max Pressure
|
Info
|
|---|---|---|---|---|---|---|---|---|
| 2-11305-HH-xx | 1/2" | - | 1 x 1/8" | 150 x 30 mm | 0,7 kg | Yes | 150 bar (2000 PSI) | Standard |
| 2-11305-HH-F-xx | 1/2" | - | 1 x 1/8" | 150 x 60 mm | 0,9 kg | Yes | 150 bar (2000 PSI) | With round flange |
| 2-11305-HH-H-xx | 1/2" | - | 1 x 1/8" | 150 x 80 mm | 0,9 kg | Yes | 150 bar (2000 PSI) | With flange + handle |
| 2-11305-HHM-JS | 1/2" | - | 1 x 1/4" NPT | 150 x 30 mm | 0,7 kg | No | 150 bar (2000 PSI) | Standard |
| 2-11305-HHM-F-JS | 1/2" | - | 1 x 1/4" NPT | 150 x 60 mm | 0,9 kg | No | 150 bar (2000 PSI) | With round flange |
| 2-11305-HHM-H-JS | 1/2" | - | 1 x 1/4" NPT | 150 x 80 mm | 0,9 kg | No | 150 bar (2000 PSI) | With flange + handle |
| 2-11305-HHS-C06 | 1" | 230 l/min (60 US GPM) | 1 x 7 mm | 190 x 44 mm | 0,9 kg | No | 150 bar (2000 PSI) | Standard |
| 2-11305-HHS-F-CO6 | 1" | 230 l/min (60 US GPM) | 1 x 7 mm | 190 x 60 mm | 1 kg | No | 150 bar (2000 PSI) | With round flange |
| 2-11305-HHS-H-CO6 | 1" | 230 l/min (60 US GPM) | 1 x 7 mm | 190 x 80 mm | 1 kg | No | 150 bar (2000 PSI) | With flange + handle |
