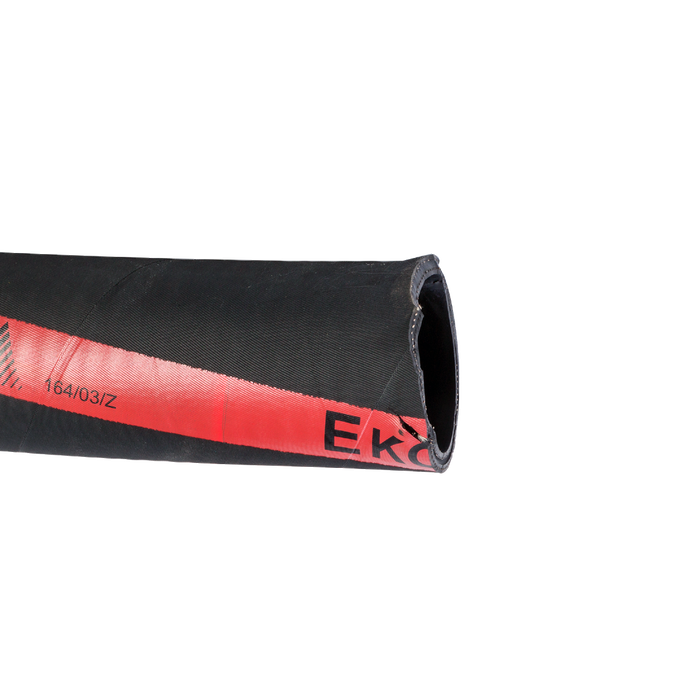

Transport Hose - Heavy Duty
Article number 8-80407640
Description
Flexible transport hose for vacuum loaders. Used for both suction and blowing of material. Entire hose is antistatic.
Advantages:
• Very flexible.
• Can be used for booth suction and blowing.
Technical description:
• Inner tube: Smooth SBR-rubber.
• Reinforcement: Synthetic textile with embedded steel helix.
• Cover: Wear and weather resistant SBR-rubber (Black, smooth).
• Temperature range: -30°C to +70°C.
• Electrical properties: Whole hose is antistatic.
Technical Data
| Article number |
Length
|
Bend Radius
|
Inner Diameter
|
Outer Diameter
|
Weight
|
Max Pressure
|
Temperature working area
|
|---|---|---|---|---|---|---|---|
| 8-80407640 | 40m | 530 mm | 76 mm | 88 mm | 2,52 kg/m | 6 Bar (87 PSI) | -30°C – +70°C |
| 8-80410240 | 40m | 700 mm | 102 mm | 115 mm | 3,42 kg/m | 3 bar (43.5 PSI) | -30°C – +70°C |
| 8-80412720 | 20m | 890 mm | 127 mm | 141 mm | 4,45 kg/m | 6 Bar (87 PSI) | -30°C – +70°C |
| 8-80415220 | 40m | 1060 mm | 152 mm | 167 mm | 6,18 kg/m | 6 Bar (87 PSI) | -30°C – +70°C |
