Trellvac Handler HD
Article number 8-1869170
Description
Working hose for vacuum loaders. Extraction and transport of highly abrasive materials. Both pressure and vacuum.
Advantages:
Light and flexible with high wear and resistance.

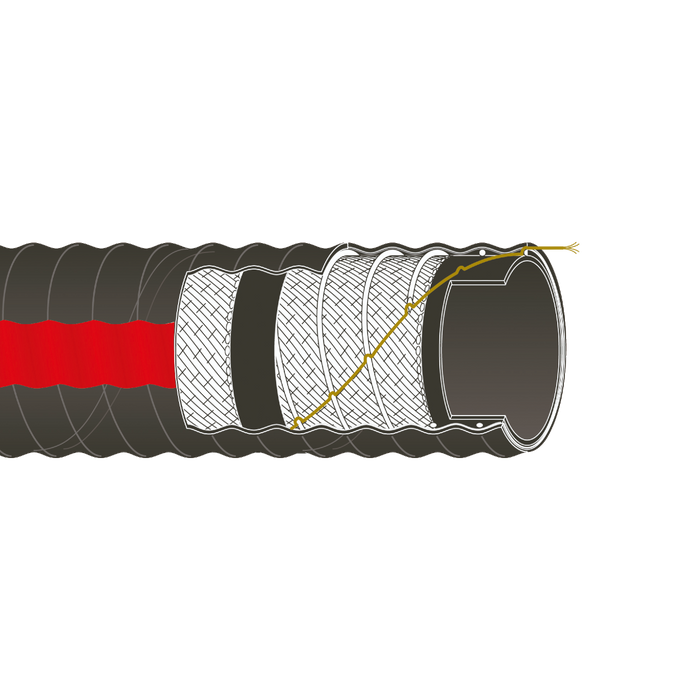

Technical description:
• Inner tube: Wear resistant NR (black, smooth).
• Reinforcement: Synthetic textile, woven fabric with embedded steel helix.
• Cover: Wear and weather resistant SBR/NR (black, corrugated).
• Temperature range: -30°C to +90°C.
• Electrical properties: Non conductive. The helix can be exposed and connected withcouplings and discharge wire.
Technical Data
| Article number |
Connection
|
Length
|
Bend Radius
|
Inner Diameter
|
Outer Diameter
|
Weight
|
Max Pressure
|
Temperature working area
|
Info
|
|---|---|---|---|---|---|---|---|---|---|
| 8-1869170 | 4" | 20 / 40 m | 400 mm | 102 mm (4″) | 114 mm | 3,1 kg/m | 5 bar (73 PSI) | -30°C – +90°C | ID5100 |
| 8-1869180 | 5" | 20 / 40 m | 500 mm | 127 mm (5″) | 139 mm | 3,8 kg/m | 5 bar (73 PSI) | -30°C – +90°C | ID5100 |
| 8-1869180-40 | 5" | 40 m | 500 mm | 127 mm (5″) | 139 mm | 3,8 kg/m | 5 bar (73 PSI) | -30°C – +90°C | ID5100 |
| 8-1869190 | 6" | 20 m | 600 mm | 152 mm (6″) | 164 mm | 4,55 kg/m | 5 bar (73 PSI) | -30°C – +90°C | ID5100 |
| 8-1869200 | 8" | 20 / 40 m | 800 mm | 204 mm (8″) | 217 mm | 8,2 kg/m | 1,5 bar | -30°C – +90°C | ID5100 |
