Industrial Bulldog 37

Industrial Bulldog 37

Article number 2-504037

Description

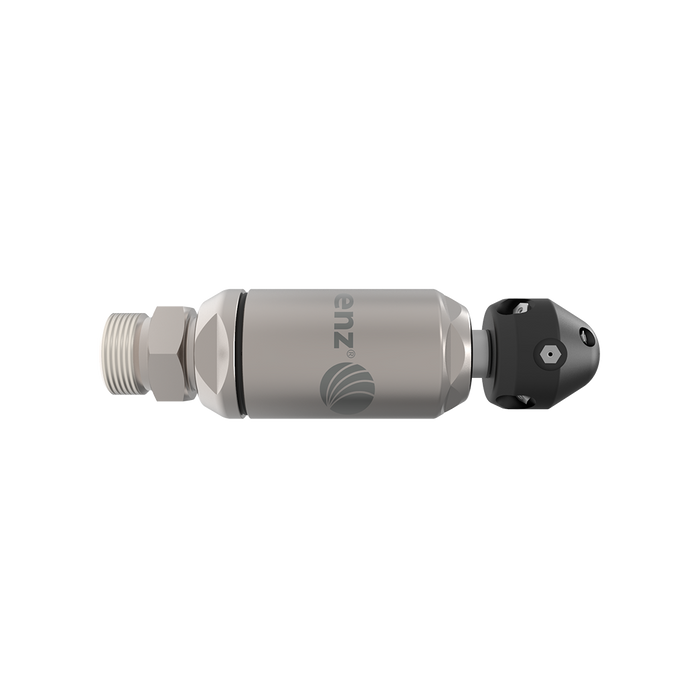

The enz® Bulldog® 1000 bar rotating nozzle is specially designed for internal pipe cleaning up to 1000 bar. It is suitable for removing even the most stubborn deposits from the pipe walls. Thanks to its clever bearing system, the Bulldog® is virtually leak-free, resulting in higher efficiency. In addition, the forward-facing cross-jet cuts out the material from the blocked pipe like a milling cutter.

Applications

  • Cleaning of heat exchangers in chemical and nuclear plants
  • General industrial cleaning
  • All in one nozzle: unplugger, polisher, universal

Technical Data

Article number
Connection
Pipe Dimension
Min. L/min at 100 bar
Front Jets
Rotating Jets
Length x Diameter
Weight
Bursting Pressure
2-504037 M24 x 1.5 40 - 100 mm 23 l/min - 45°: 3 x M6, 75°: 3 x M6 142 x 38 mm 0,50 kg 1000 bar
2-504037N 1/2" NPT 40 - 100 mm 23 l/min - 45°: 3 x M6, 75°: 3 x M6 142 x 38 mm 0,50 kg 1000 bar
2-506037 M24 x 1.5 40 - 100 mm 27 l/min 2 x M4 45°: 3 x M6, 75°: 3 x M6 142 x 38 mm 0,50 kg 1000 bar
2-506037N 1/2" NPT 40 - 100 mm 27 l/min 2 x M4 45°: 3 x M6, 75°: 3 x M6 142 x 38 mm 0,50 kg 1000 bar
