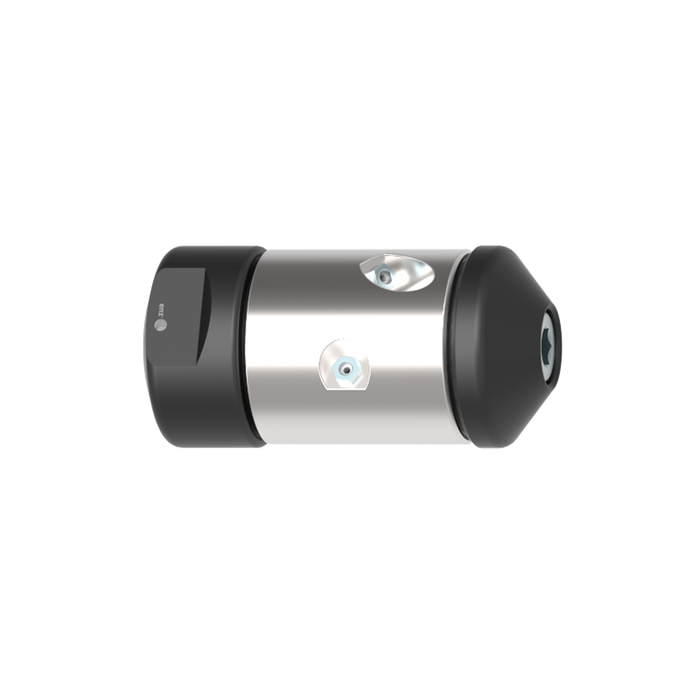

Industrial KBRV
Article number 2-050405
Description
The maximum pressure rotating nozzles enz® are most efficient in cleaning the inside wall of pipes with a pressure up to 1000 bar. They are most appropriate to remove harder deposits from the pipe walls and are for tube and pipe cleaning.
Applications
- Cleaning of heat exchangers in chemical and nuclear plants and for general industrial pipe cleaning
Technical Data
| Article number |
Connection
|
Pipe Dimension
|
Min. L/min at 100 bar
|
Rotating Jets
|
Length x Diameter
|
Weight
|
Bursting Pressure
|
|---|---|---|---|---|---|---|---|
| 2-050405 | M24 x 1.5 | 42 - 55 mm | 40 l/min | 4 x M6 | 106 x 40 mm | 0,70 kg | 1000 bar |
| 2-050505 | M24 x 1.5 | 55 - 77 mm | 40 l/min | 4 x M6 | 121 x 50 mm | 1,25 kg | 1000 bar |
