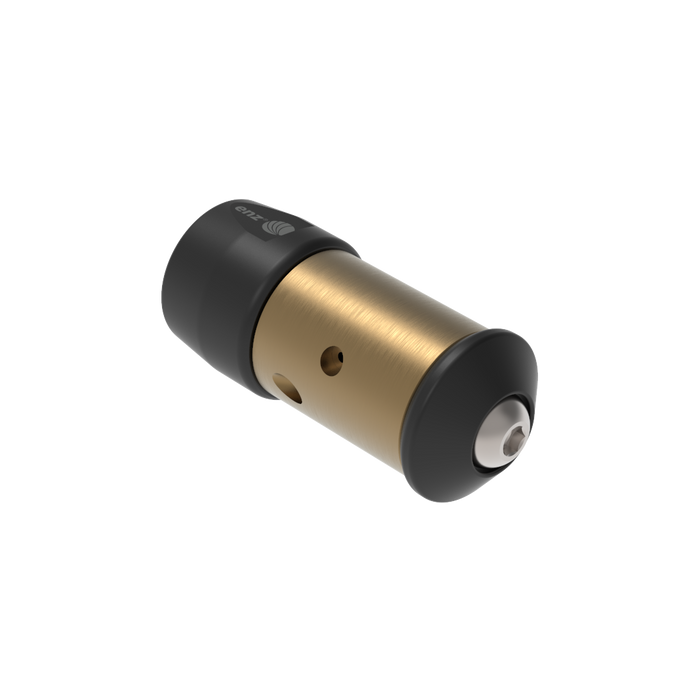

UR 13
Article number 2-05013-20-2
Description
enz® UR nozzles are used to clean and in particular to polish the inside of smaller pipes and tubes, e.g. in heat exchangers. The enz® water-brake makes them spin at a constant speed. You can clean the tubes up to 1500 bar (22,000 psi). The 90° and 45° jets clean the hardest of deposits while pulling the nozzle into the tube and flushing the debris out.
Technical Data
| Article number |
Connection
|
Pipe Dimension
|
Min. L/min at 100 bar
|
Rotating Jets
|
Length x Diameter
|
Weight
|
Bursting Pressure
|
Info
|
|---|---|---|---|---|---|---|---|---|
| 2-05013-20-2 | 1/8" BSPP | 15 - 20 mm (0.6" - 0.8") | 20 l/min (5 US GPM) | 45°: 2 x 0.45, 90°: 2 x 0.45 mm | 30 x 13 mm | 0,02 kg | 1500 bar (21750 PSI) | Short |
| 2-05013-20-N-1 | 1/8" NPT | 15 - 20 mm (0.6" - 0.8") | 18 l/min (4.8 US GPM) | 45°: 2 x 0.45, 90°: 2 x 0.45 mm | 30 x 13 mm | 0,02 kg | 1000 bar | Short |
| 2-05013-20-UB-2 | 3/8" UNF | 15 - 20 mm (0.6" - 0.8") | 20 l/min (5 US GPM) | 45°: 2 x 0.45, 90°: 2 x 0.45 mm | 30 x 13 mm | 0,02 kg | 1500 bar (21750 PSI) | Short |
| 2-05013-30-2 | 1/8" BSPP | 15 - 20 mm (0.6" - 0.8") | 30 l/min (8 US GPM) | 45°: 2 x 0.55, 90°: 2 x 0.50 mm | 30 x 13 mm | 0,02 kg | 1500 bar (21750 PSI) | Short |
| 2-05013-30-N-1 | 1/8" NPT | 15 - 20 mm (0.6" - 0.8") | 25 l/min (6 US GPM) | 45°: 2 x 0.55, 90°: 2 x 0.50 mm | 30 x 13 mm | 0,02 kg | 1000 bar | Short |
| 2-05013-30-UB-2 | 3/8" UNF | 15 - 20 mm (0.6" - 0.8") | 30 l/min (8 US GPM) | 45°: 2 x 0.55, 90°: 2 x 0.50 mm | 30 x 13 mm | 0,02 kg | 1500 bar (21750 PSI) | Short |
| 2-05013-40-2 | 1/8" BSPP | 15 - 20 mm (0.6" - 0.8") | 40 l/min (10 US GPM) | 45°: 2 x 0.65, 90°: 2 x 0.60 mm | 30 x 13 mm | 0,02 kg | 1500 bar (21750 PSI) | Short |
| 2-05013-40-N-1 | 1/8" NPT | 15 - 20 mm (0.6" - 0.8") | 33 l/min (8.7 US GPM) | 45°: 2 x 0.65, 90°: 2 x 0.60 mm | 30 x 13 mm | 0,02 kg | 1000 bar | Short |
| 2-05013-40-UB-2 | 3/8" UNF | 15 - 20 mm (0.6" - 0.8") | 40 l/min (10 US GPM) | 45°: 2 x 0.65, 90°: 2 x 0.60 mm | 30 x 13 mm | 0,02 kg | 1000 bar | Short |
| 2-05013-20-L-2 | 1/8" BSPP | 15 - 20 mm (0.6" - 0.8") | 20 l/min (5 US GPM) | 45°: 2 x 0.45, 90°: 2 x 0.45 mm | 40 x 13 mm | 0,03 kg | 1500 bar (21750 PSI) | Long |
| 2-05013-20-LN-1 | 1/8" NPT | 15 - 20 mm (0.6" - 0.8") | 18 l/min (4.8 US GPM) | 45°: 2 x 0.45, 90°: 2 x 0.45 mm | 40 x 13 mm | 0,03 kg | 1000 bar | Long |
| 2-05013-20-LUB-2 | 3/8" UNF | 15 - 20 mm (0.6" - 0.8") | 20 l/min (5 US GPM) | 45°: 2 x 0.45, 90°: 2 x 0.45 mm | 40 x 13 mm | 0,03 kg | 1500 bar (21750 PSI) | Long |
| 2-05013-30-L-2 | 1/8" BSPP | 15 - 20 mm (0.6" - 0.8") | 30 l/min (8 US GPM) | 45°: 2 x 0.55, 90°: 2 x 0.50 mm | 40 x 13 mm | 0,03 kg | 1500 bar (21750 PSI) | Long |
| 2-05013-30-LN-1 | 1/8" NPT | 15 - 20 mm (0.6" - 0.8") | 25 l/min (6 US GPM) | 45°: 2 x 0.55, 90°: 2 x 0.50 mm | 40 x 13 mm | 0,03 kg | 1000 bar | Long |
| 2-05013-30-LUB-2 | 3/8" UNF | 15 - 20 mm (0.6" - 0.8") | 30 l/min (8 US GPM) | 45°: 2 x 0.55, 90°: 2 x 0.50 mm | 40 x 13 mm | 0,03 kg | 1500 bar (21750 PSI) | Long |
| 2-05013-40-L-2 | 1/8" BSPP | 15 - 20 mm (0.6" - 0.8") | 40 l/min (10 US GPM) | 45°: 2 x 0.65, 90°: 2 x 0.60 mm | 40 x 13 mm | 0,03 kg | 1500 bar (21750 PSI) | Long |
| 2-05013-40-LN-1 | 1/8" NPT | 15 - 20 mm (0.6" - 0.8") | 33 l/min (8.7 US GPM) | 45°: 2 x 0.65, 90°: 2 x 0.60 mm | 40 x 13 mm | 0,03 kg | 1000 bar | Long |
| 2-05013-40-LUB-2 | 3/8" UNF | 15 - 20 mm (0.6" - 0.8") | 40 l/min (10 US GPM) | 45°: 2 x 0.65, 90°: 2 x 0.60 mm | 40 x 13 mm | 0,03 kg | 1500 bar (21750 PSI) | Long |
