UR 22
Article number 2-05022-A-2
Description

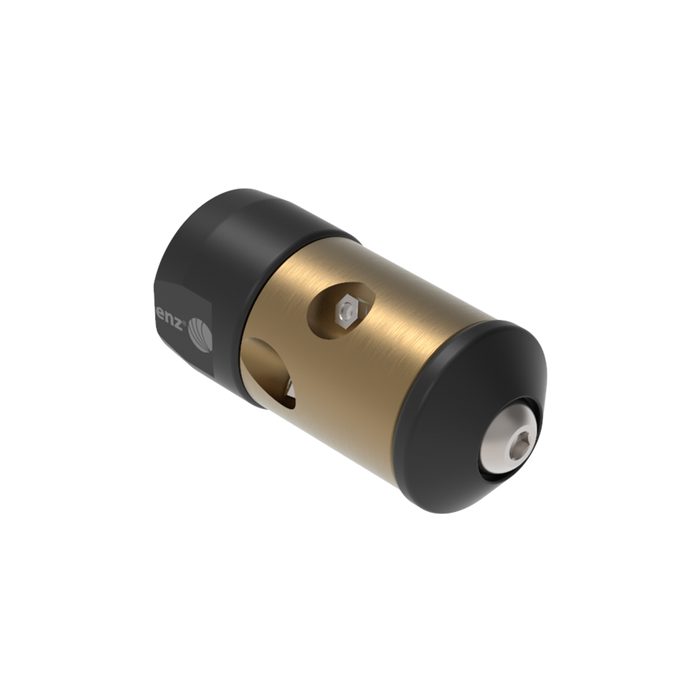

enz® UR nozzles are used to clean and in particular to polish the inside of smaller pipes and tubes, e.g. in heat exchangers. The enz® water-brake makes them spin at a constant speed. You can clean the tubes up to 1500 bar (22,000 psi). The 90° and 45° jets clean the hardest of deposits while pulling the nozzle into the tube and flushing the debris out.
Technical Data
| Article number |
Connection
|
Pipe Dimension
|
Min. L/min at 100 bar
|
Rotating Jets
|
Length x Diameter
|
Weight
|
Bursting Pressure
|
|---|---|---|---|---|---|---|---|
| 2-05022-A-2 | 1/4" BSPP | 23 - 34 mm (0.9" - 1.3") | 23 l/min (6 US GPM) | 45°: 2 x M4, 80°: 2 x M4 | 48 x 23 mm | 0,1 kg | 1500 bar (21750 PSI) |
| 2-05022-NB-1 | 3/8" NPT | 23 - 34 mm (0.9" - 1.3") | 17 l/min (4.1 US GPM) | 45°: 2 x M4, 80°: 2 x M4 | 48 x 23 mm | 0,1 kg | 1000 bar |
| 2-05022-UB-2 | 9/16" UNF | 23 - 34 mm (0.9" - 1.3") | 23 l/min (6 US GPM) | 45°: 2 x M4, 80°: 2 x M4 | 48 x 23 mm | 0,1 kg | 1500 bar (21750 PSI) |
| 2-05022-LA-2 | 1/4" BSPP | 23 - 34 mm (0.9" - 1.3") | 23 l/min (6 US GPM) | 45°: 2 x M4, 80°: 2 x M4 | 48 x 23 mm | 0,1 kg | 1500 bar (21750 PSI) |
| 2-05022-LNB-1 | 3/8" NPT | 23 - 34 mm (0.9" - 1.3") | 17 l/min (4.1 US GPM) | 45°: 2 x M4, 80°: 2 x M4 | 48 x 23 mm | 0,1 kg | 1000 bar |
| 2-05022-LUB-2 | 9/16" UNF | 23 - 34 mm (0.9" - 1.3") | 23 l/min (6 US GPM) | 45°: 2 x M4, 80°: 2 x M4 | 48 x 23 mm | 0,1 kg | 1500 bar (21750 PSI) |
