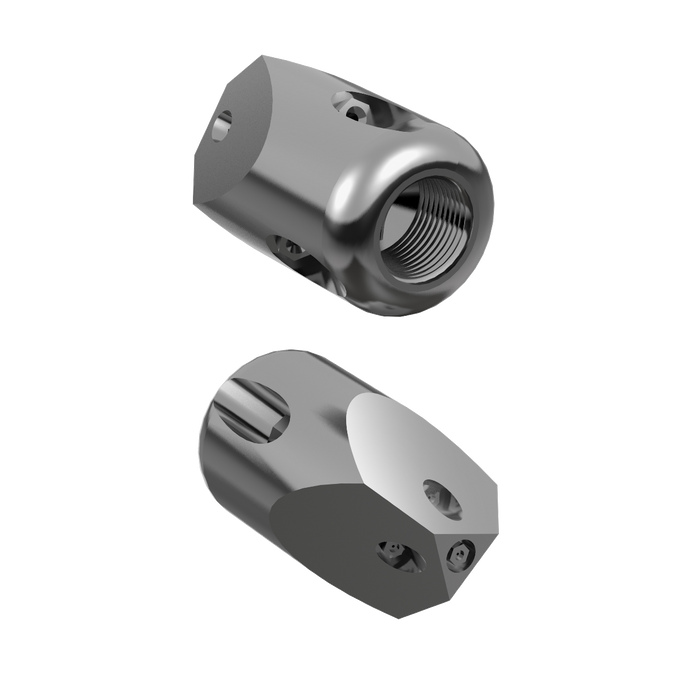

Chisel nozzle (jets)
Article number 2-11342-xx
Description
AquaTeq® Chisel Nozzles Tier 2 supplied with exchangeable jet inserts booth for front and rear jets. The exchangeable jets allow a perfect match to your jetting truck and the pump capacity. The nozzles can be supplied with jets inserts in harden stainless steel (JS) or ceramic jets (JC). If you use recycling water we recommend the ceramic jets for longer service lifetime.
AquaTeq® Chisel Nozzles is the perfect all-purpose nozzle to open clogs and remove general debris including grease and light roots. The front of the nozzle is supplied with sharpened edges that will, together with the four front jets, help slice through grease, ice and roots and handle blockages of many types. The multiple front jets penetrate the blockage while the rear jets provide thrust to push nozzle up the pipe. The nozzle can also be used for hydraulic thrust boring.
AquaTeq® Chisel Nozzle is a problem-solving nozzle good to keep in any jetting toolbox. It opens up clogged pipes and penetrate obstacles. Various sizes are available to work in pipe sizes from 50 mm up to 500 mm (2”-20”).
The Tier 2 Chisel nozzles with exchangeable jets are available from ½” thread up to 1 ¼”.
The Chisel nozzles Tier2 handle pump pressures of 250 Bar (3500 PSI).
Technical Data
| Article number |
Connection
|
Pipe Dimension
|
Min. L/min at 100 bar
|
Rear Jets
|
Front Jets
|
Length x Diameter
|
Weight
|
Recycling
|
Max Pressure
|
|---|---|---|---|---|---|---|---|---|---|
| 2-11342-xx | 1/2″ | 50 – 250 mm (2″ – 10″) | 30 l/min (8 US GPM) | 3 x M6 (25°) | 3 x M4 (15°) + 1 x M4 (0°) | 62 x 33 mm | 0,25 kg | Yes | 250 bar (3500 PSI) |
| 2-11542-xx | 1″ | 100 – 300mm (4″ – 12″) | 100 l/min (25 US GPM) | 6 x M6 (20°) | 3 x M6 (15°) + 1 x M6 (0°) | 95 x 49 mm | 0,75 kg | Yes | 250 bar (3500 PSI) |
| 2-11642-xx | 1 1/4″ | 150 – 500mm (6″ – 20″) | 150 l/min (37 US GPM) | 6 x 1/8″ - (20°) | 3 x M6 (15°) + 1 x M6 (0°) | 135 x 70 mm | 2,2 kg | Yes | 250 bar (3500 PSI) |
