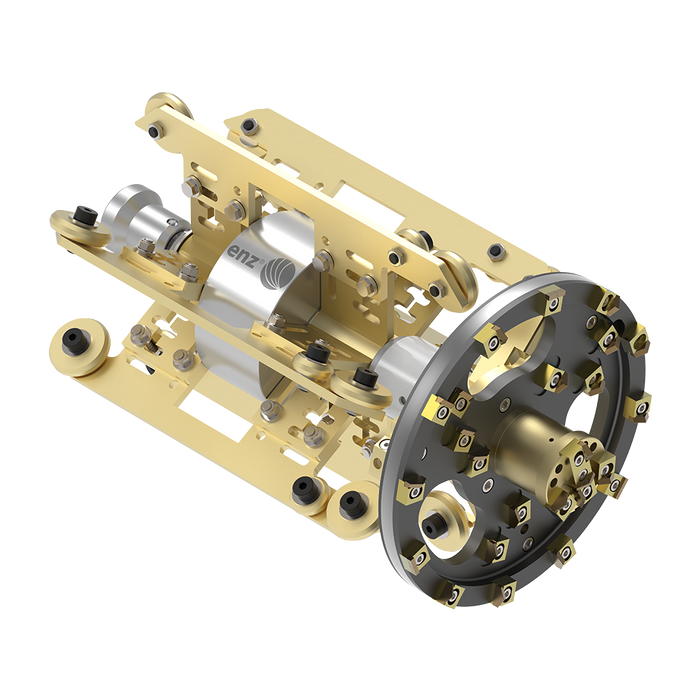

Impact Milling Cutter
Article number 2-14400
Description
These tools are a radical innovation for milling-off deposits in pipes. The enz® impact milling cutters are designed to remove the most stubborn deposits like concrete, injection cement, mineral deposits etc. They work with a percussion system of 600-3000 impulses per minute and up to 12 tons of impact force. Please ask for special equipment for plastic deposits! When using the pull rod (drawing device) the cutters can be driven with half the water quantity (from 200 mm).
Characteristics
- superior performance compared to other cutters
- extended tooth life
- easy handling
- low maintenance cost
- proven design
All impact milling cutters can be operated without impacts.
Technical Data
| Article number |
Connection
|
Pipe Dimension
|
Min. L/min at 100 bar
|
Rear Jets
|
Rotating Jets
|
Length x Diameter
|
Weight
|
Recycling
|
Bursting Pressure
|
|---|---|---|---|---|---|---|---|---|---|
| 2-14400 | 1", 1/4" | 400 mm | 300 l/min (80 US GPM) | 3 x M10 | 3 x M10 | 710 x 375 mm | 89 kg | No | 150 bar (2175 PSI) |
| 2-14450 | 1", 1/4" | 450 mm | 400 l/min (106 US GPM) | 3 x M10 | 3 x M10 | 710 x 425 mm | 107 kg | No | 150 bar (2175 PSI) |
| 2-14500 | 1", 1/4" | 500 mm | 450 l/min (118 US GPM) | 3 x M10 | 3 x M10 | 710 x 475 mm | 110 kg | No | 150 bar (2175 PSI) |
| 2-14600 | 1", 1/4" | 600 mm | 500 l/min (132 US GPM) | 3 x M10 | 3 x M10 | 710 x 575 mm | 120 kg | No | 150 bar (2175 PSI) |
