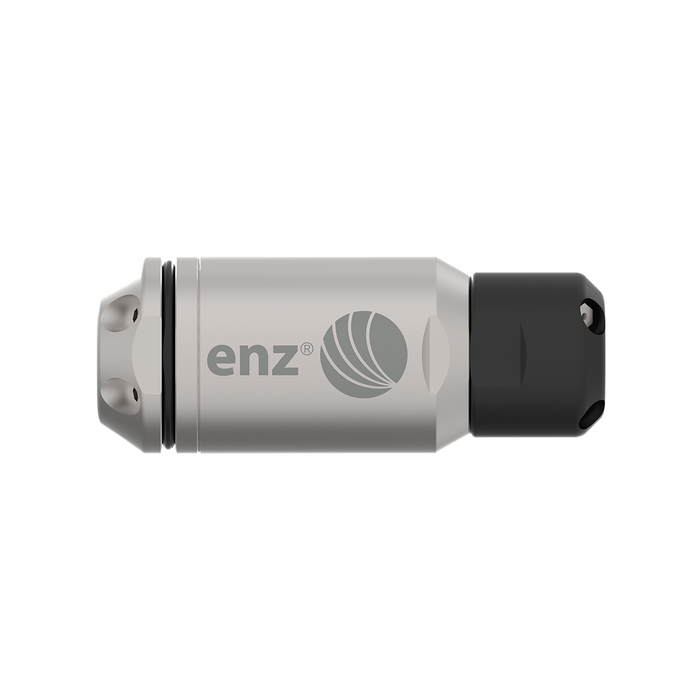

Bulldog 60 Unplugger
Article number 2-406060
Description
The enz® Bulldog® rotating nozzle is designed for use with both recycled and fresh water. Its sliding bearing accommodates recycled water, while the integrated oil-free braking system controls rotation and reduces wear. The hardened body withstands demanding cleaning work, and no skid is required.
The nozzle tackles stubborn blockages, fat, roots and hard deposits while moving loosened material forward through the pipe. The nozzle insert determines the maximum permissible dirt particle size, up to Ø 1 mm.
Advantages
- Effective against tough blockages
- Moves loosened material forward
- Hardened body; no skid required
- Easy to handle and practically maintenance-free
Applications
- Removing fat, roots and hard deposits
- Cleaning with recycled or fresh water
Technical Data
| Article number |
Connection
|
Pipe Dimension
|
Min. L/min at 100 bar
|
Rear Jets
|
Front Jets
|
Rotating Jets
|
Length x Diameter
|
Weight
|
Recycling
|
Max Pressure
|
|---|---|---|---|---|---|---|---|---|---|---|
| 2-406060 | 1/2" | 100 - 300 mm | 60 l/min | - | 1 x M8 (11°) | 4 x M8 | 60 x 161 mm | 2,36 kg | Yes | 200 bar |
| 2-406060AS | 3/4" | 100 - 300 mm | 150 l/min | 6 x M8 | 1 x M8 (11°) | 4 x M8 | 60 x 161 mm | 2,31 kg | Yes | 200 bar |
| 2-406060A | 3/4" | 100 - 300 mm | 60 l/min | - | 1 x M8 (11°) | 4 x M8 | 60 x 161 mm | 2,31 kg | Yes | 200 bar |
| 2-406060BS | 1" | 100 - 300 mm | 150 l/min | 6 x M8 | 1 x M8 (11°) | 4 x M8 | 60 x 153 mm | 2,25 kg | Yes | 200 bar |
| 2-406060B | 1" | 100 - 300 mm | 60 l/min | - | 1 x M8 (11°) | 4 x M8 | 60 x 153 mm | 2,25 kg | Yes | 200 bar |
