Cutting Ball

Cutting Ball

€0,00
Article number 2-420050A

Description

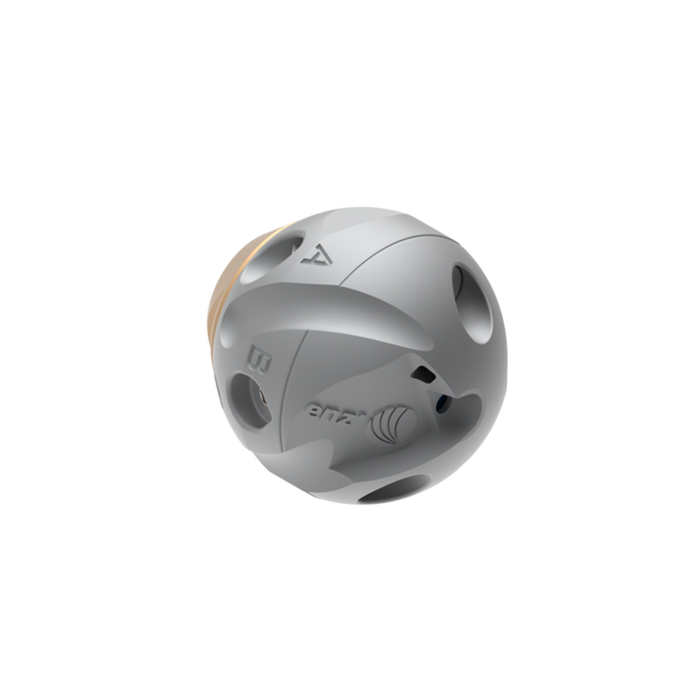

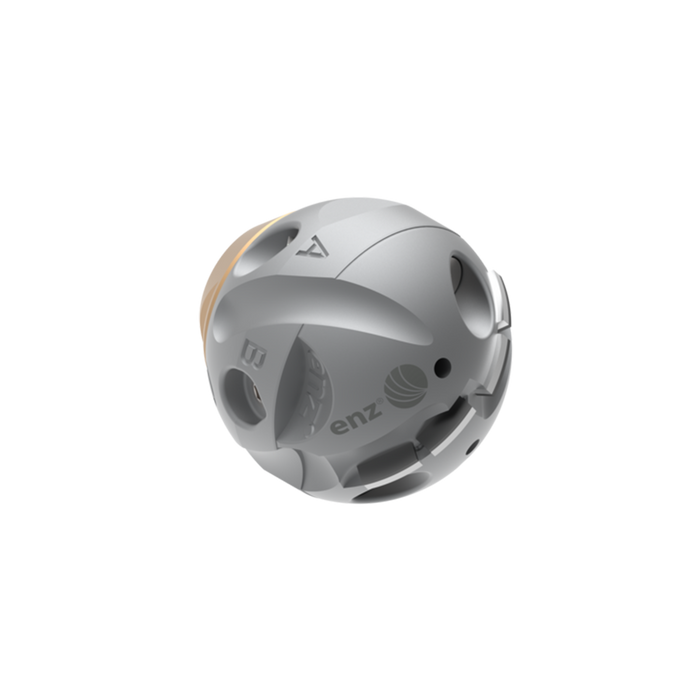

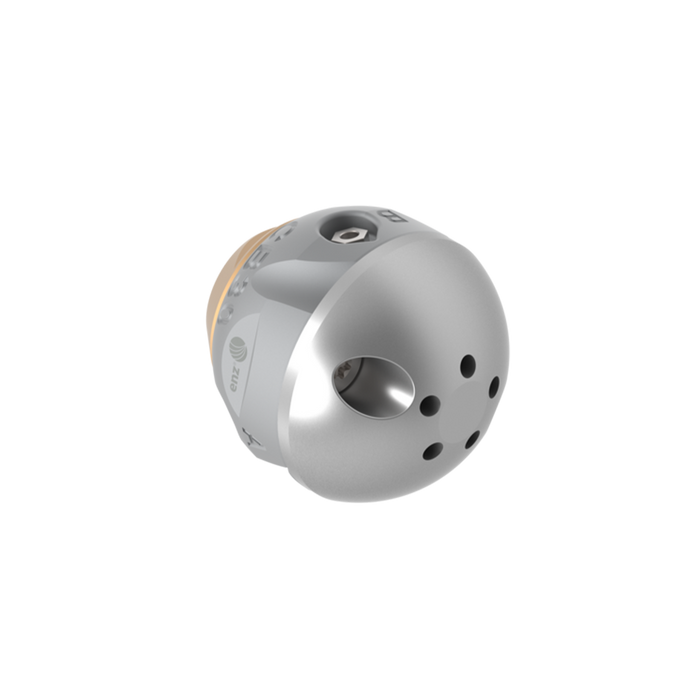

The CB range (enz® cutting ball) is equipped with a carbide root knife or penetrator blade for pipes that are clogged by more than 50% The CB90 and CB70 (enz cutting ball) work without impact, but are equipped with a plug that can be removed, that creates a vibration in the tool when rotating. (not the CB50). The cutters on the side are self-sharpening and maintain their sharpness over their entire service life. The area of application of the cutting ball is diverse. Due to its spherical shape it can easily navigate bends without damaging the pipe.  Moreover, the proven braking system from enz® ensures for a lower rotation speed. The CB90 & CB70 are leakage-free and can be operated with recycling water.

•    The enz® CB cutting balls are particularly suitable for roots in seepage pipes, mineral deposits and limescale.
•    All CB cutting balls are supplied in an enz® case.

Technical data

Connection 1/4"
For recyclers No
Length x diameter 62 x 49 mm
Min water flow at 1450 psi 25 l/min (6.6 us gpm)
Pipe dimension 55 -100 mm
Rotation jets 4 x m6
Max pressure 200 bar (2900 psi)
Weight 0,4 kg
Connection 3/8"
For recyclers No
Length x diameter 62 x 49 mm
Min water flow at 1450 psi 25 l/min (6.6 us gpm)
Pipe dimension 55 -100 mm
Rotating jets 4 x m6
Max pressure 200 bar (2900 psi)
Weight 0,4 kg
Connection 3/8"
For recyclers No
Length x diameter 62 x 49 mm
Min water flow at 1450 psi 55 l/min (14.5 us gpm)
Other information With thrust
Pipe dimension 55 -100 mm
Rear jets 4 x 1,3 mm
Rotating jets 4 x m6
Max pressure 200 bar (2900 psi)
Weight 0,4 kg
Connection 1/2"
For recyclers No
Length x diameter 62 x 58 mm
Pipe dimension 55 -100 mm
Rotating jets 4 x m6
Max pressure 200 bar (2900 psi)
Weight 0,4 kg
Connection 1/2"
For recyclers No
Length x diameter 62 x 58 mm
Other information With thrust
Pipe dimension 55 -100 mm
Rear jets 4 x 1,3 mm
Rotating jets 4 x m6
Max pressure 200 bar (2900 psi)
Weight 1,2 kg
Connection 1/2"
For recyclers Yes
Length x diameter 92 x 68 mm
Min water flow at 1450 psi 60 l/min (15.8 us gpm)
Pipe dimension 80 - 120 mm
Rotation jets 6 x m6
Max pressure 200 bar (2900 psi)
Weight 2,2 kg
Connection 1/2"
For recyclers Yes
Length x diameter 92 x 68 mm
Min water flow at 1450 psi 80 l/min (21 us gpm)
Other information With thrust
Pipe dimension 80 - 120 mm
Rear jets 3 x m4
Rotating jets 6 x m6
Max pressure 200 bar (2900 psi)
Weight 2,2 kg
Connection 1/2"
For recyclers Yes
Length x diameter 96 x 89 mm
Pipe dimension 100 - 150 mm
Rotating jets 6 x m6
Max pressure 200 bar (2900 psi)
Water flow 60 l/min (15.8 us gpm)
Weight 3,2 kg
Connection 1/2"
For recyclers Yes
Length x diameter 96 x 89 mm
Min water flow at 1450 psi 80 l/min (21 us gpm)
Other information With thrust
Pipe dimension 100 - 150 mm
Rear jets 3 x m4
Rotating jets 6 x m6
Max pressure 200 bar (2900 psi)
Weight 3,5 kg
Connection 1/2"
For recyclers Yes
Length x diameter 96 x 89 mm
Min water flow at 1450 psi 60 l/min (15.8 us gpm)
Pipe dimension 100 - 150 mm
Rotation jets 6 x m6
Max pressure 200 bar (2900 psi)
Weight 3,2 kg
Connection 1/2"
For recyclers Yes
Length x diameter 96 x 89 mm
Min water flow at 1450 psi 60 l/min (15.8 us gpm)
Other information With thrust
Pipe dimension 100 - 150 mm
Rear jets 3 x m4
Rotating jets 6 x m6
Max pressure 200 bar (2900 psi)
Weight 3,5 kg
