eBomb Camera Nozzle
Article number 18-40150iB
Description

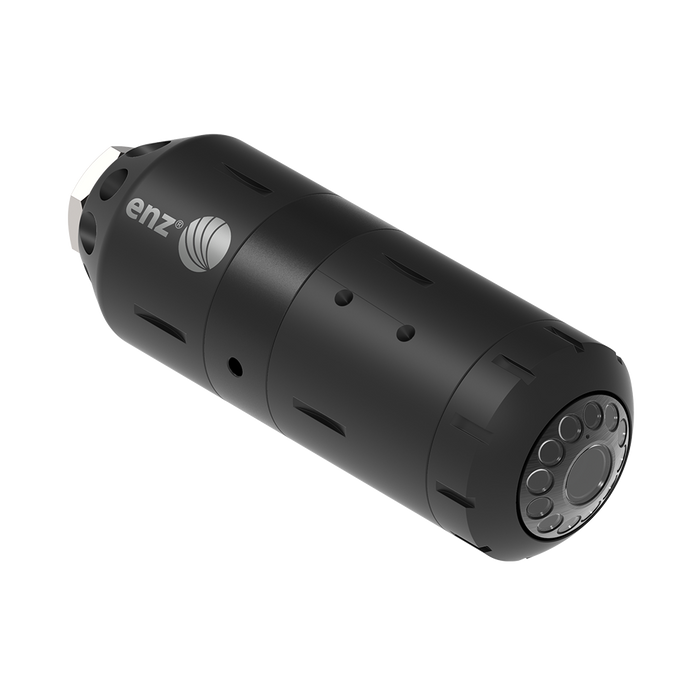

enz® Camera – the camera nozzle with integrated data management
The enz® Camera Nozzle adds a new dimension to the enz® nozzle product range! The modular design allows universal use with all nozzle types, such as the eBomb or the eBulldog, and thus guarantees streak-free all-around cleaning in every application! The HD-ready resolution and 12 high-power LEDs deliver high-resolution video footage for quality control, documentation, and preliminary inspection. Data management is fully integrated into the system through the WiFi interface and connection to the enz® Cloud. All your manholes and channels are automatically mapped on Google Maps with the videos. The enz® Camera Nozzle, which is simple, fast, and robust, increases productivity without any negative impact on the cleaning performance or quality.
Technical Data
| Article number |
Connection
|
Pipe Dimension
|
Min. L/min at 100 bar
|
Rear Jets
|
Length x Diameter
|
Weight
|
Recycling
|
Max Pressure
|
|---|---|---|---|---|---|---|---|---|
| 18-40150iB | 1" | 150 - 400 mm | 150 l/min (40 US GPM) | 10 x M10 | 295 x 95 mm | 9,2 kg | Yes | 250 bar (3625 PSI) |
| 18-40150iC | 1 1/4" | 150 - 400 mm | 150 l/min (40 US GPM) | 10 x M10 | 295 x 95 mm | 9,2 kg | Yes | 250 bar (3625 PSI) |
| 18-40250iB | 1" | 250 - 400 mm | 150 l/min (40 US GPM) | 10 x M10 | 295 x 173 mm | 12,4 kg | Yes | 250 bar (3625 PSI) |
| 18-40250iC | 1 1/4" | 250 - 400 mm | 150 l/min (40 US GPM) | 10 x M10 | 295 x 173 mm | 12,4 kg | Yes | 250 bar (3625 PSI) |
