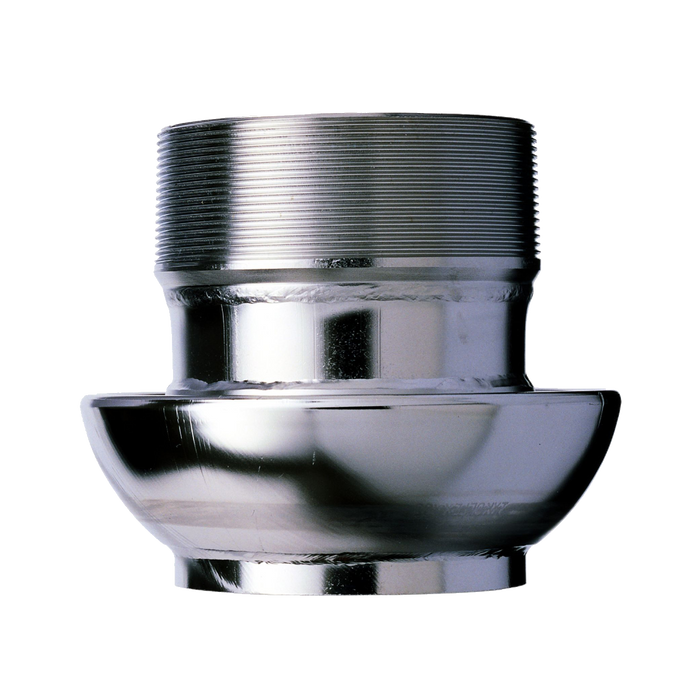

KVG Male Coupling With Thread
€0,00
Article number 9-1621028
Description
M42 is a complete range of quick couplings for safe
and speedy handling of pipes and hose systems. The
couplings are produced in several dimensions and
are available in the following materials:
• Aluminium
• Stainless steel
• Galvanised steel
The construction makes the couplings extremely
user-friendly. It guarantees total tightness for both
pressure and vacuum and can be used for anything
that can be pumped, blown, pressed or sucked
through pipes and hoses.
Maximum working pressure: Liquids 12.5 bar.
Compressed air 8 bar. Vacuum-tight.
Technical data
Connection
R50
Coupling size
48
Material
Galvanized steel
Connection
R50
Coupling size
48
Material
Stainless steel
Connection
R50
Coupling size
48 (with guide)
Material
Galvanized steel
Connection
R50
Coupling size
76
Material
Stainless steel
Connection
R65
Coupling size
76
Material
Galvanized steel
Connection
R80
Coupling size
76
Material
Galvanized steel
Connection
R80
Coupling size
76
Material
Stainless steel
Connection
R80
Coupling size
76 (with guide)
Material
Galvanized steel
Connection
R100
Coupling size
102
Material
Galvanized steel
Connection
R100
Coupling size
102
Material
Stainless steel
Connection
R100
Coupling size
102 (with guide)
Material
Galvanized steel
Connection
R125
Coupling size
133
Material
Galvanized steel
Connection
R125
Coupling size
133
Material
Stainless steel
Connection
R150
Coupling size
152
Material
Galvanized steel
Connection
R150
Coupling size
152
Material
Stainless steel
Connection
G80
Coupling size
76
Material
Galvanized steel
Connection
G100
Coupling size
102
Material
Galvanized steel
