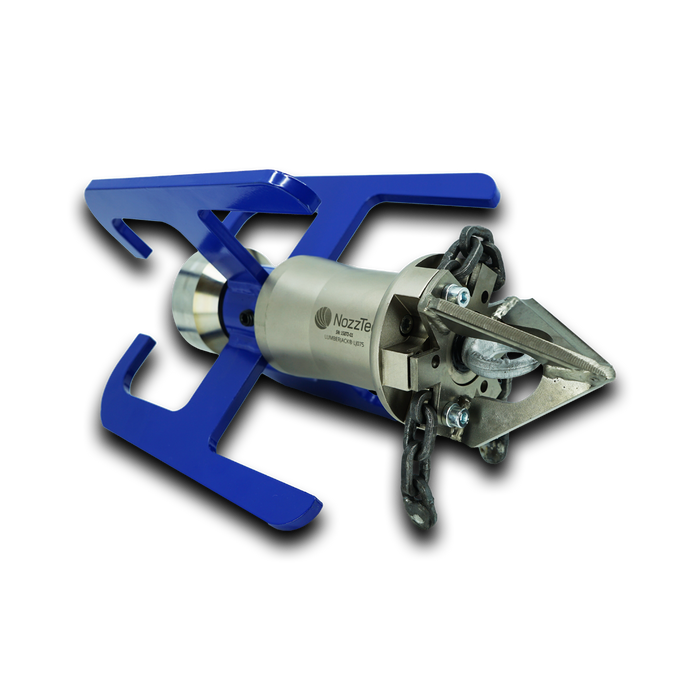

LUMBERJACK® LJ075
Article number LJ075-C04-01
Description
LUMBERJACK®LJ075 is the 2nd smallest cutter in the series. It can be supplied with ½”, ¾” or 1” hose connection. The LJ075 cutter can operate effectively with as low water flow rate as 60 LPM (16 US GPM) and can handle pressures up to 250 Bar (3500 PSI). LJ075 cover pipe sizes from 100 mm (4”) up to 250 mm (10”) and is delivered as a kit according to your needs. For ¾” and 1” hose connection the cutter can be used up to 300 mm (12”) pipes.
The LUMBERJACK®LJ075 skids are firm and sized to give the best guiding performance in pipe. Always use the correct size of sled for the pipe to be cut. The LUMBERJACK® should never be operated without a centralizing skid. Sizing is the key word setting up your LUMBERJACK® with the correct sled and cutting links for the job. The length of the cutting link, in concrete pipe or other insensitive pipes, should at the start of the cutting job, be approx.5 mm (1/5”) longer than the front diameter of the sled to be used. If performing cutting jobs in more fragile pipes make sure the cutting links are shorter than the max diameter of the sled. Save your worn links for this line of work. Important operating instructions are found in the operation manual following each cutter at delivery.
Technical Data
| Article number |
Connection
|
Pipe Dimension
|
Min. L/min at 100 bar
|
Rear Jets
|
Rotating Jets
|
Length x Diameter
|
Weight
|
Recycling
|
Bursting Pressure
|
|---|---|---|---|---|---|---|---|---|---|
| LJ075-C04-01 | 1/2" | 100|150 mm (4", 6") | 60 l/min (16 US GPM) | 4 x M6 | 3 x M6 | 560 x 250 x 460 mm | 10,6 kg | Yes | 200 bar (2900 PSI) |
| LJ075-C04-02 | 1/2" | 100|150|200 mm (4", 6", 8") | 60 l/min (16 US GPM) | 4 x M6 | 3 x M6 | 560 x 250 x 460 mm | 13 kg | Yes | 200 bar (2900 PSI) |
| LJ075-C04-03 | 1/2" | 100|150|225 mm (4", 6", 9") | 60 l/min (16 US GPM) | 4 x M6 | 3 x M6 | 560 x 250 x 460 mm | 13,4 kg | Yes | 200 bar (2900 PSI) |
| LJ075-C05-01 | 3/4″ | 100|150 mm (4", 6") | 60 l/min (16 US GPM) | 4 x M6 | 3 x M6 | 560 x 250 x 460 mm | 10,8 kg | Yes | 200 bar (2900 PSI) |
| LJ075-C05-02 | 3/4″ | 100|150|200 mm (4", 6", 8") | 60 l/min (16 US GPM) | 4 x M6 | 3 x M6 | 560 x 250 x 460 mm | 13,2 kg | Yes | 200 bar (2900 PSI) |
| LJ075-C05-03 | 3/4″ | 100|150|225 mm (4", 6", 9") | 60 l/min (16 US GPM) | 4 x M6 | 3 x M6 | 560 x 250 x 460 mm | 13,4 kg | Yes | 200 bar (2900 PSI) |
| LJ075-C05-04 | 3/4″ | 100|150|200|250 mm (4", 6", 8", 10") | 60 l/min (16 US GPM) | 4 x M6 | 3 x M6 | 560 x 250 x 460 mm | 15,25 kg | Yes | 200 bar (2900 PSI) |
| LJ075-C06-01 | 1" | 100|150 mm (4", 6") | 60 l/min (16 US GPM) | 4 x M6 | 3 x M6 | 560 x 250 x 460 mm | 11,3 kg | Yes | 200 bar (2900 PSI) |
| LJ075-C06-02 | 1" | 100|150|200 mm (4", 6", 8") | 60 l/min (16 US GPM) | 4 x M6 | 3 x M6 | 560 x 250 x 460 mm | 13,7 kg | Yes | 200 bar (2900 PSI) |
| LJ075-C06-03 | 1" | 100|150|225 mm (4", 6", 9") | 60 l/min (16 US GPM) | 4 x M6 | 3 x M6 | 560 x 250 x 460 mm | 13,9 kg | Yes | 200 bar (2900 PSI) |
| LJ075-C06-04 | 1" | 100|150|200|250 mm (4", 6", 8", 10") | 60 l/min (16 US GPM) | 4 x M6 | 3 x M6 | 560 x 250 x 460 mm | 16,4 kg | Yes | 200 bar (2900 PSI) |
| LJ075-C06-05 | 1" | 200 mm (8") | 60 l/min (16 US GPM) | 4 x M6 | 3 x M6 | 560 x 250 x 460 mm | 11,54 kg | Yes | 200 bar (2900 PSI) |
| LJ075-C06-06 | 1" | 150|200|250 mm (6", 8", 10") | 60 l/min (16 US GPM) | 4 x M6 | 3 x M6 | 560 x 250 x 460 mm | 16,4 kg | Yes | 200 bar (2900 PSI) |
