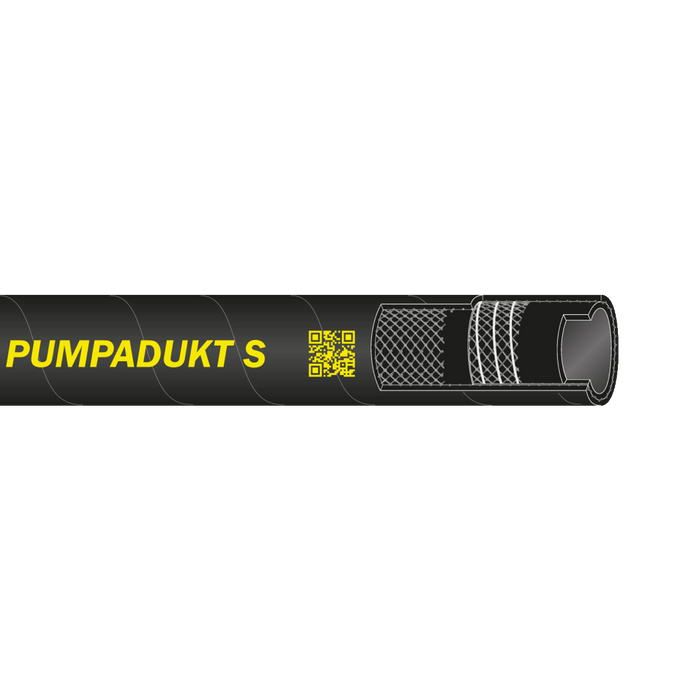

Pumpadukt S

€0,00
Article number 8-32599

Description

Suction and discharge of petroleum products with aromatic content up to 50%. Loading and unloading of boats and road or rail tankers. Fixed installations in various industries.

Advantages:
Robust and very flexible. Cover with excellent oil and weather resistance.

Technical description:
• Inner tube: Oil- and petrol resistant NBR (black, smooth).
• Reinforcement: Synthetic textile, braided with embedded steel helix.
• Cover: Oil- and weather resistant CR (black, fabric impression).
• Temperature range: -40°C to +100°C.
• Electrical properties: Conductive tube and cover.
Coil can be connected to couplings.

Technical data

Bending radius 275 mm
Delivery length 20 / 40 m
Inner diameter 50 mm (2″)
Max vacuum 0,9 bar
Max working pressure 16 bar
Other information Tb12050
Outer diameter 66 mm
Temperature working area -40°c – +100°c
Weight 2,29 kg/m
Bending radius 300 mm
Delivery length 20 / 40 m
Inner diameter 63 mm (2½″)
Max vacuum 0,9 bar
Max working pressure 16 bar
Other information Tb12050
Outer diameter 79 mm
Temperature working area -40°c – +100°c
Weight 2,93 kg/m
Bending radius 350 mm
Delivery length 20 / 40 m
Inner diameter 75 mm (3″)
Max vacuum 0,9 bar
Max working pressure 16 bar
Other information Tb12050
Outer diameter 91 mm
Temperature working area -40°c – +100°c
Weight 3,65 kg/m
Bending radius 450 mm
Delivery length 20 / 40 m
Inner diameter 100 mm (4″)
Max vacuum 0,9 bar
Max working pressure 16 bar
Other information Tb12050
Outer diameter 116 mm
Temperature working area -40°c – +100°c
Weight 5,85 kg/m
