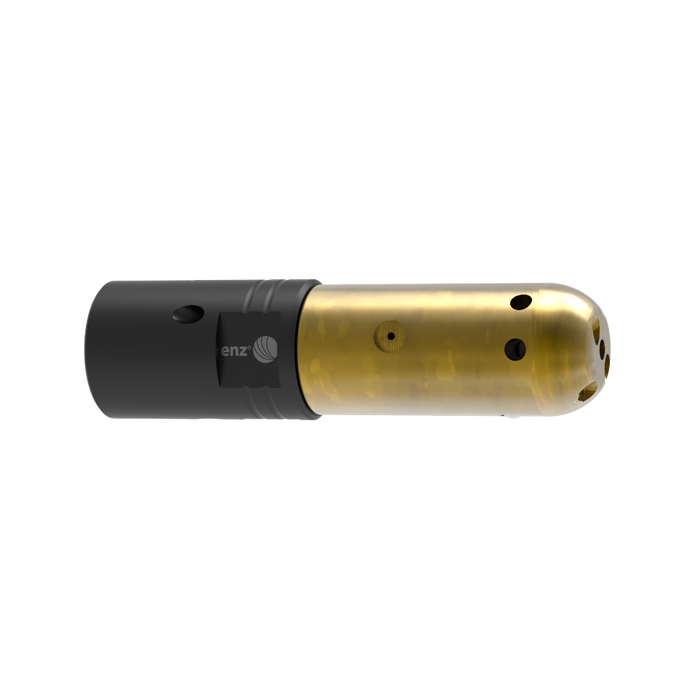

UC13
Article number 2-06013-18-2
The UC enz® nozzle (with brake jet) are for industrial cleaning of heat exchangers and completely clogged tubes.
The cross jet, which is directed to the front, cuts the material in the completely clogged pipe like a milling cutter. Simultaneously 2 radial jets of 60° - 90° clean the pipe wall. Through the same effect the removed material is flushed away. The cross jet causes a reaction force which, in many cases, makes it necessary to set the nozzle on a lance. The UC nozzles are available with or without thrust. Through all that, the UC nozzle has become a tool for universal use.
Applications
• For industrial cleaning of heat exchangers and completely clogged tubes
Article number |
Connection
|
Pipe Dimension
|
Min. L/min at 100 bar
|
Rear Jets
|
Front Jets
|
Rotating Jets
|
Length x Diameter
|
Weight
|
Bursting Pressure
|
---|---|---|---|---|---|---|---|---|---|
2-06013-18-2 | 1/8" BSPP | 16 - 20 mm (0.6" - 0.8") | 16 / 18 l/min (4.2 - 4.8 US GPM) | - | 45°: 2 x 0.50 mm | 90°: 2 x 0.50 mm | 48 x 13 mm | 0,03 kg | 1000 / 1500 bar |
2-06013-18-N-1 | 1/8" NPT | 16 - 20 mm (0.6" - 0.8") | 16 l/min (4.2 US GPM) | - | 45°: 2 x 0.50 mm | 90°: 2 x 0.50 mm | 48 x 13 mm | 0,03 kg | 1000 bar |
2-06013-18-NS-1 | 1/8" NPT | 16 - 20 mm (0.6" - 0.8") | 28 l/min (7.4 US GPM) | 3 x 0.60 mm | 45°: 2 x 0.50 mm | 90°: 2 x 0.50 mm | 48 x 13 mm | 0,03 kg | 1000 bar |
2-06013-18-S-2 | 1/8" BSPP | 16 - 20 mm (0.6" - 0.8") | 27 / 36 l/min (7.1 - 9.5 US GPM) | 3 x 0.60 mm | 45°: 2 x 0.50 mm | 90°: 2 x 0.50 mm | 48 x 13 mm | 0,03 kg | 1000 / 1500 bar |
2-06013-18- UA-2 | 1/4" x 28UNF | 16 - 20 mm (0.6" - 0.8") | 16 / 18 l/min (4.2 - 4.8 US GPM) | - | 45°: 2 x 0.50 mm | 90°: 2 x 0.50 mm | 48 x 13 mm | 0,03 kg | 1000 / 1500 bar |
2-06013-18- UAL-2 | 1/4" x 28UNF LH | 16 - 20 mm (0.6" - 0.8") | 16 / 18 l/min (4.2 - 4.8 US GPM) | - | 45°: 2 x 0.50 mm | 90°: 2 x 0.50 mm | 48 x 13 mm | 0,03 kg | 1000 / 1500 bar |
2-06013-18- UALS-2 | 1/4" x 28UNF LH | 16 - 20 mm (0.6" - 0.8") | 28 / 36 l/min (7.4 - 9.5 US GPM) | 3 x 0.60 mm | 45°: 2 x 0.50 mm | 90°: 2 x 0.50 mm | 48 x 13 mm | 0,03 kg | 1000 / 1500 bar |
2-06013-18- UAS-2 | 1/4" x 28UNF | 16 - 20 mm (0.6" - 0.8") | 28 / 36 l/min (7.4 - 9.5 US GPM) | 3 x 0.60 mm | 45°: 2 x 0.50 mm | 90°: 2 x 0.50 mm | 48 x 13 mm | 0,03 kg | 1000 / 1500 bar |
2-06013-18- UB-2 | 3/8" x 24UNF | 16 - 20 mm (0.6" - 0.8") | 16 / 18 l/min (4.2 - 4.8 US GPM) | - | 45°: 2 x 0.50 mm | 90°: 2 x 0.50 mm | 48 x 13 mm | 0,03 kg | 1000 / 1500 bar |
2-06013-18- UBL-2 | 3/8" x 24UNF LH | 16 - 20 mm (0.6" - 0.8") | 16 / 18 l/min (4.2 - 4.8 US GPM) | - | 45°: 2 x 0.50 mm | 90°: 2 x 0.50 mm | 48 x 13 mm | 0,03 kg | 1000 / 1500 bar |
2-06013-18- UBLS-2 | 3/8" x 24UNF LH | 16 - 20 mm (0.6" - 0.8") | 28 / 36 l/min (7.4 - 9.5 US GPM) | 3 x 0.60 mm | 45°: 2 x 0.50 mm | 90°: 2 x 0.50 mm | 48 x 13 mm | 0,03 kg | 1000 / 1500 bar |
2-06013-18- UBS-2 | 3/8" x 24UNF | 16 - 20 mm (0.6" - 0.8") | 28 / 36 l/min (7.4 - 9.5 US GPM) | 3 x 0.60 mm | 45°: 2 x 0.50 mm | 90°: 2 x 0.50 mm | 48 x 13 mm | 0,03 kg | 1000 / 1500 bar |
2-06013-30-2 | 1/8" BSPP | 16 - 20 mm (0.6" - 0.8") | 24 / 30 l/min (6.3 - 7.9 US GPM) | - | 45°: 2 x 0.70 mm | 90°: 2 x 0.70 mm | 48 x 13 mm | 0,03 kg | 1000 / 1500 bar |
2-06013-30-N-1 | 1/8" NPT | 16 - 20 mm (0.6" - 0.8") | 24 l /min (6.3 US GPM) | - | 45°: 2 x 0.70 mm | 90°: 2 x 0.70 mm | 48 x 13 mm | 0,03 kg | 1000 bar |
2-06013-30-NS-1 | 1/8" NPT | 16 - 20 mm (0.6" - 0.8") | 42 l/min (11 US GPM) | - | 45°: 2 x 0.70 mm | 90°: 2 x 0.70 mm | 48 x 13 mm | 0,03 kg | 1000 bar |
2-06013-30-S-2 | 1/8" BSPP | 16 - 20 mm (0.6" - 0.8") | 42 / 52 l/min (11 - 14 US GPM) | 3 x 0.60 mm | 45°: 2 x 0.70 mm | 90°: 2 x 0.70 mm | 48 x 13 mm | 0,03 kg | 1000 / 1500 bar |
2-06013-30- UA-2 | 1/4" x 28UNF | 16 - 20 mm (0.6" - 0.8") | 24 / 30 l/min (6.3 - 7.9 US GPM) | - | 45°: 2 x 0.50 mm | 90°: 2 x 0.50 mm | 48 x 13 mm | 0,03 kg | 1000 / 1500 bar |
2-06013-30- UAL-2 | 1/4" x 28UNF LH | 16 - 20 mm (0.6" - 0.8") | 24 / 30 l/min (6.3 - 7.9 US GPM) | - | 45°: 2 x 0.70 mm | 90°: 2 x 0.70 mm | 48 x 13 mm | 0,03 kg | 1000 / 1500 bar |
2-06013-30- UALS-2 | 1/4" x 28UNF LH | 16 - 20 mm (0.6" - 0.8") | 42 / 52 l/min (11 - 14 US GPM) | 3 x 0.60 mm | 45°: 2 x 0.70 mm | 90°: 2 x 0.70 mm | 48 x 13 mm | 0,03 kg | 1000 / 1500 bar |
2-06013-30- UAS-2 | 1/4" x 28UNF | 16 - 20 mm (0.6" - 0.8") | 42 / 52 l/min (11 - 14 US GPM) | 3 x 0.60 mm | 45°: 2 x 0.70 mm | 90°: 2 x 0.70 mm | 48 x 13 mm | 0,03 kg | 1000 / 1500 bar |
2-06013-30- UB-2 | 3/8" x 24UNF | 16 - 20 mm (0.6" - 0.8") | 24 / 30 l/min (6.3 - 7.9 US GPM) | - | 45°: 2 x 0.70 mm | 90°: 2 x 0.70 mm | 48 x 13 mm | 0,03 kg | 1000 / 1500 bar |
2-06013-30- UBL-2 | 3/8" x 24UNF LH | 16 - 20 mm (0.6" - 0.8") | 24 / 30 l/min (6.3 - 7.9 US GPM) | - | 45°: 2 x 0.70 mm | 90°: 2 x 0.70 mm | 48 x 13 mm | 0,03 kg | 1000 / 1500 bar |
2-06013-30- UBLS-2 | 3/8" x 24UNF LH | 16 - 20 mm (0.6" - 0.8") | 42 / 52 l/min (11 - 14 US GPM) | 3 x 0.60 mm | 45°: 2 x 0.70 mm | 90°: 2 x 0.70 mm | 48 x 13 mm | 0,03 kg | 1000 / 1500 bar |
2-06013-30- UBS-2 | 3/8" x 24UNF | 16 - 20 mm (0.6" - 0.8") | 42 / 52 l/min (11 - 14 US GPM) | 3 x 0.60 mm | 45°: 2 x 0.70 mm | 90°: 2 x 0.70 mm | 48 x 13 mm | 0,03 kg | 1000 / 1500 bar |
